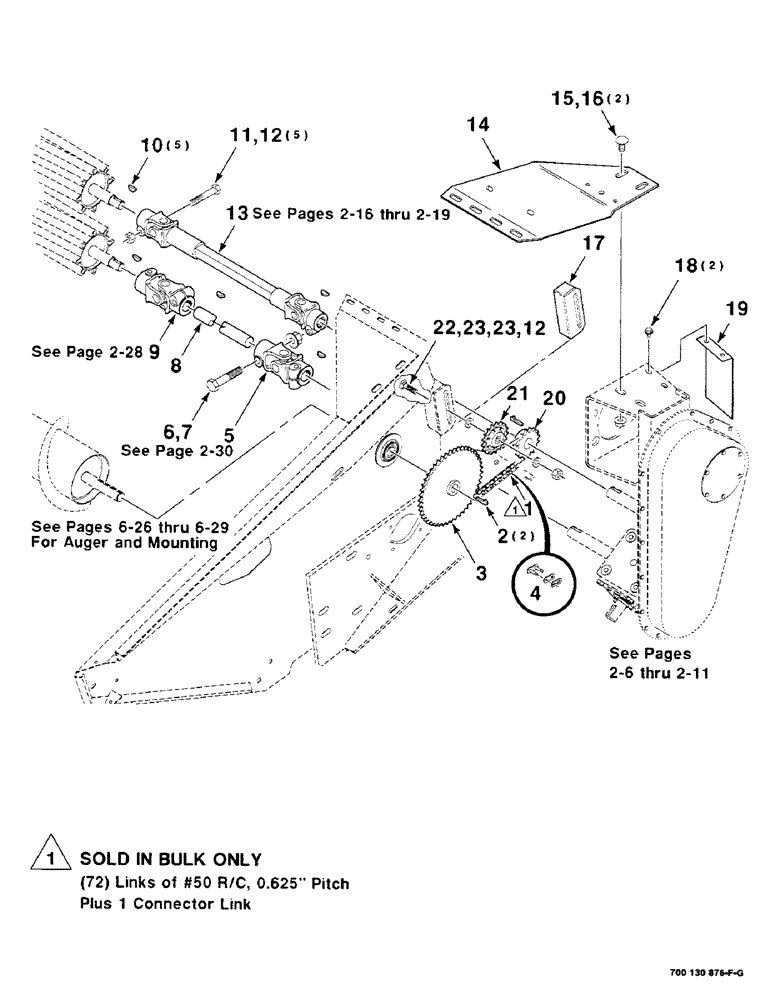

Запчасти Case IH 8840 (2-12) - AUGER DRIVE ASSEMBLY (S.N. CFH0032001 THRU CFH0095399) (58) - ATTACHMENTS/HEADERS

1

700704752

CHAIN

#50 ROLLER CHAIN (o-ring, 10 foot bulk)

1шт.

Ref # 1 (700704752) - Per GPN, the specs are : CHAIN-RLR, ;.625, NO.50, 192 LINKS 10FT.SERVICE LENGTH. SMA 3/18/98

1шт.

2

61424

KEY

1/4 X 1-1/4 GIB KEY

2шт.

3

700114748

SPROCKET

- 50, 45 tooth

1шт.

4

700702950

LINK

- connector, #50, Daido

1шт.

700709539

LINK,15.88mm Pitch

LINK - connector, #50, Diamond

1шт.

5

700715721

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

6

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

8

700114741

SHAFT

- drive, conditioner (14 foot)

1шт.

700114742

SHAFT

- drive, conditioner (16 foot)

1шт.

9

700715720

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

10

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

11

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

5шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

13

700705407

DRIVE SHAFT

U-JOINT ASSEMBLY (14 foot)

1шт.

700706597

UNIVERSAL JOINT

U-JOINT ASSEMBLY (16 foot)

1шт.

14

700119007

SUPPORT

- upper

1шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 HFSLN

2шт.

17

700114672

MOUNTING PARTS

IDLER MOUNTING

1шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

19

700114536

SHIELD

- rear

1шт.

20

700708837

SPROCKET

- 50, 16 tooth

1шт.

21

7087398

DRIVE SPROCKET

SPROCKET - idler, #50, 17 tooth

1шт.

22

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

23

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.
