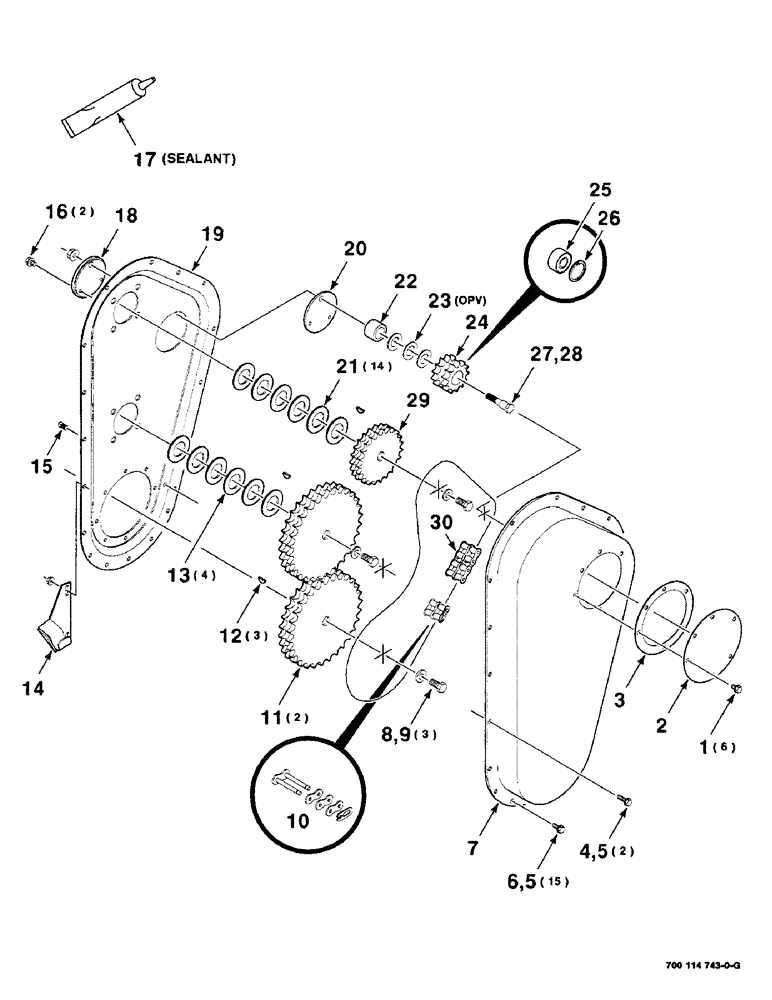

Запчасти Case IH 8840 (2-08) - CHAINBOX ASSEMBLY (CONTINUED) (700114743 CHAINBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

2

442541

COVER

1шт.

3

744128

GASKET

1шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

17шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

15шт.

7

700114796

COVER

- chainbox

1шт.

8

700707050

SCREW

1/2-13 X 1 C GR8

3шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

3шт.

10

241-1326

LINK,12.7mm Pitch

CONNECTOR LINK - double, #60

1шт.

11

700114752

SPROCKET

- double, 30 tooth

2шт.

12

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

3шт.

13

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

4шт.

14

700114780

CLIP

1шт.

15

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 NPTF SQUARE HEAD PLUG

1шт.

16

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

2шт.

17

700707823

SEALANT

1шт.

18

700114759

CAM

- outside, right

1шт.

19

700114745

PLATE

- chainbox

1шт.

20

700114766

CAM

- inside

1шт.

21

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

1шт.

22

437640

BUSHING,12.95mm ID x 19.05mm OD x 12.7mm L

1шт.

23

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

1шт.

24

700114755

SPROCKET

ASSEMBLY - double, idler, 13 tooth (includes items 27 and 28)

1шт.

25

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING

1шт.

26

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

27

700114754

BOLT

1/2-13 X 2-1/2 HEX BOLT - special

1шт.

28

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

29

700114753

SPROCKET

- double, 23 tooth

1шт.

30

700706593

CHAIN

- double roller #60, (85 links)

1шт.
