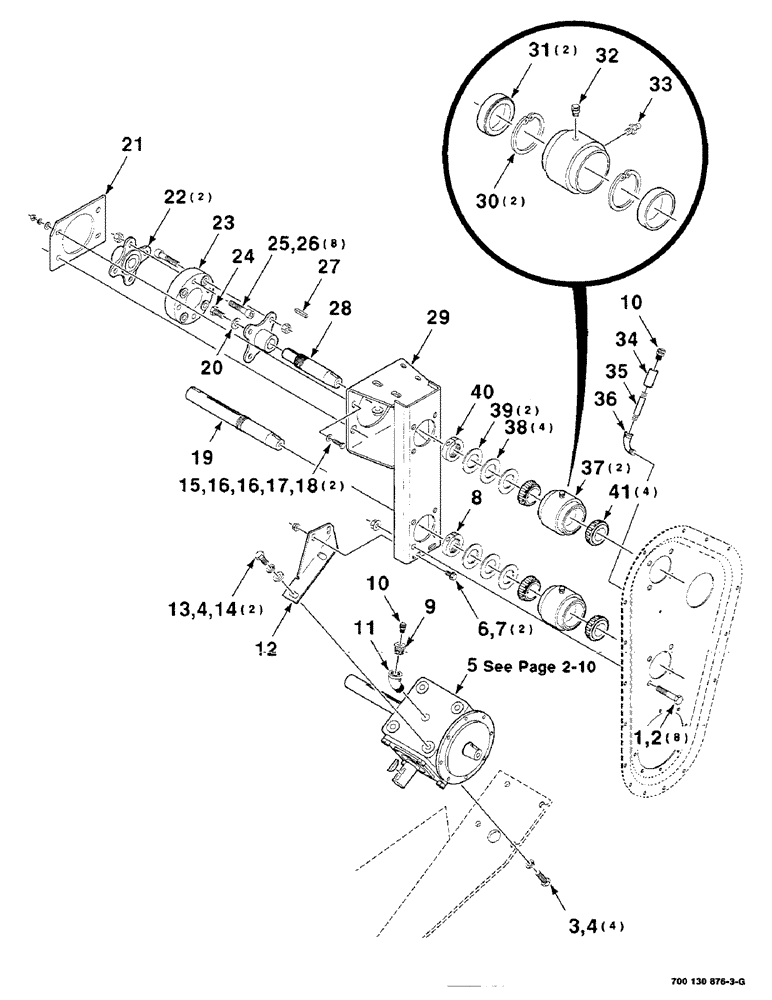

Запчасти Case IH 8840 (2-06) - CHAINBOX ASSEMBLY (700114743 CHAINBOX ASSEMBLY COMPLETE) (58) - ATTACHMENTS/HEADERS

700114743

ASSEMBLY

CHAINBOX ASSEMBLY COMPLETE (includes pages 2-6 thru 2-10)

1шт.

1

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

8шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

700706595

GEARBOX

ASSEMBLY

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

700706353

COLLAR

-CLAMP, threaded

1шт.

9

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING

1шт.

10

152127H1

BREATHER,1/8"-27, Short

VENT

2шт.

11

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 X 45 DEGREE STREET ELL

1шт.

12

700114760

GUSSET

1шт.

13

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

14

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

700114757

SHAFT

- lower

1шт.

20

6165138

WASHER

WASHER

1шт.

21

6459721

MOUNTING PARTS

PLATE - adapter

1шт.

22

700114803

HUB

AND PLATE

2шт.

23

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

24

700707050

SCREW

1/2-13 X 1 C GR8

1шт.

25

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

8шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

27

O3312AB

KEY

1/4 X 1/4 X 1-1/2 KEY

1шт.

28

700114758

SHAFT

- main, upper

1шт.

29

700114763

SUPPORT

MOUNTING - chainbox

1шт.

30

100-21231

SNAP RING,2.312", Int, #231

Ring, Snap, 2.312", Int, #231

2шт.

31

651817R1

BEARING CUP

2шт.

32

7792005

VENT

- pressure relief

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

34

221-326

COUPLING,Pipe, 1/8" NPT

1/8 PIPE COUPLING

1шт.

35

221-109

PIPE,Nipple, 1/8" NPT x 2"

1/8 X 2 PIPE NIPPLE

1шт.

36

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

37

700114761

TUBE

ASSEMBLY (includes items 30, 31, 32 and 33)

2шт.

38

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

4шт.

39

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

40

700706600

COLLAR

- clamp, threaded

1шт.

41

700711926

CONE

- bearing

4шт.
