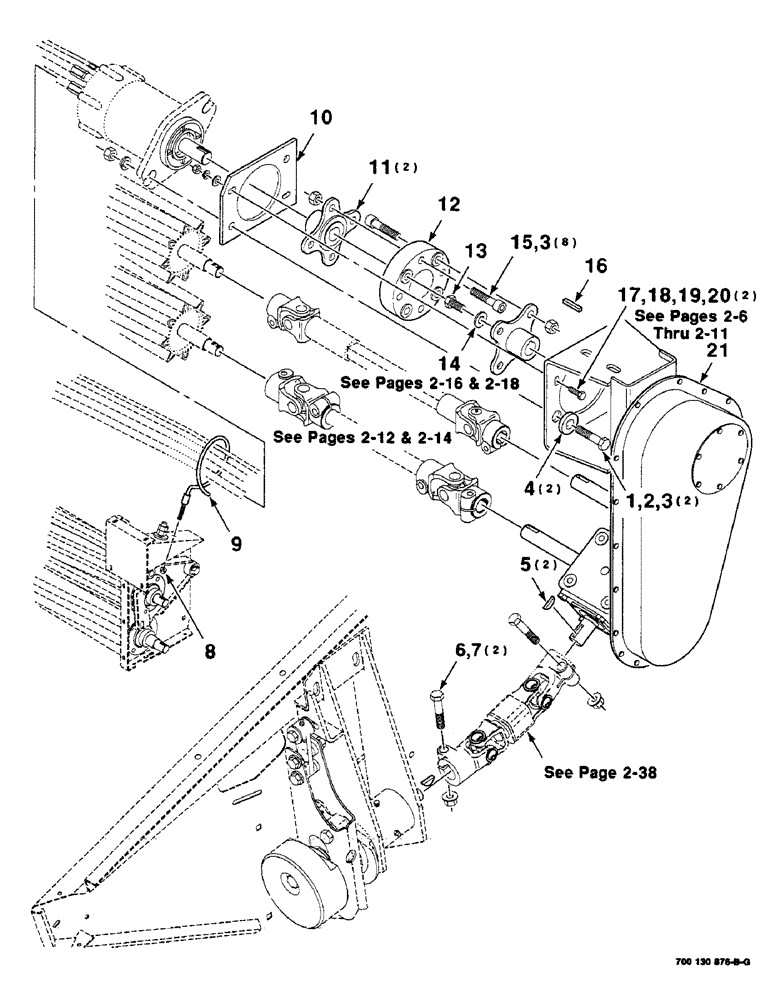

Запчасти Case IH 8840 (2-04) - FLEX COUPLING AND U-JOINT ASSEMBLY (S.N. CFH0032865 AND (58) - ATTACHMENTS/HEADERS

1

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

4

319558

SPACER

WASHER - special

2шт.

5

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

6

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

9

700119716

ROD

HOLDER - hose

1шт.

10

6459721

MOUNTING PARTS

PLATE - adapter

1шт.

11

700114803

HUB

AND PLATE

2шт.

12

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

13

700707050

SCREW

1/2-13 X 1 C GR8

1шт.

14

6165138

WASHER

WASHER

1шт.

15

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

8шт.

16

O3312AB

KEY

1/4 X 1/4 X 1-1/2 KEY

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

18

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

425-105

NUT,5/16"-18, G5

2шт.

21

700114743

ASSEMBLY

CHAINBOX ASSEMBLY

1шт.
