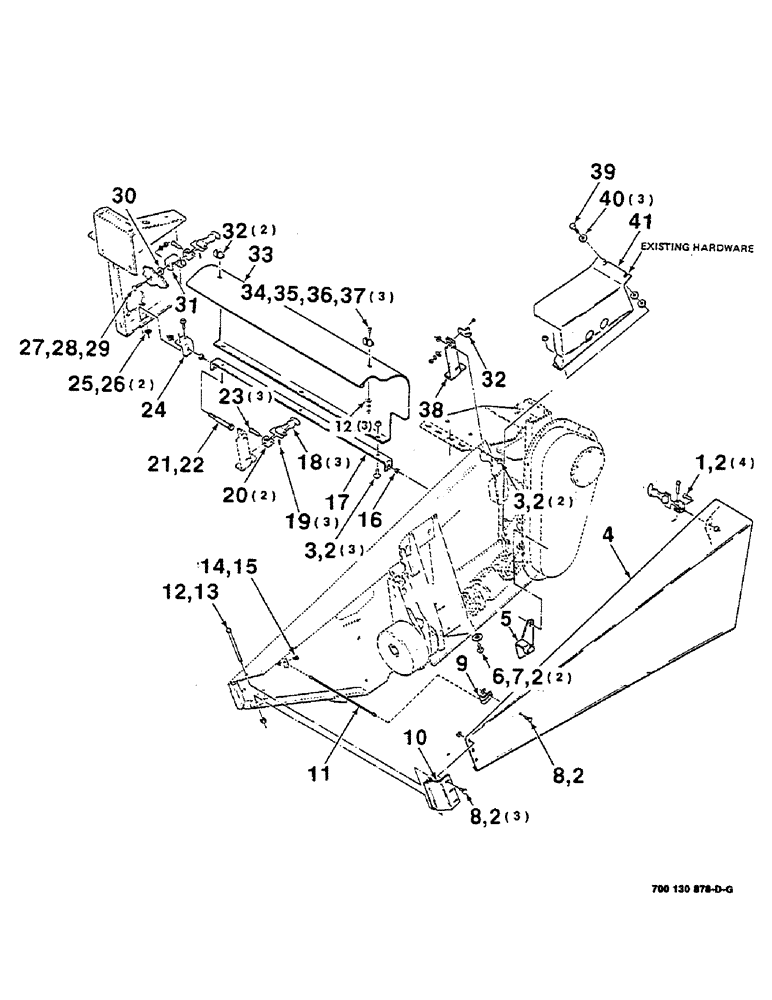

Запчасти Case IH 8840 (7-36) - SHIELD ASSEMBLIES (LEFT) (S.N. CFH0032001 THRU CFH0032226) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

15шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

4

700114790

SHIELD

- left

1шт.

5

700114780

CLIP

- shield

1шт.

6

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

7

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

9

700114675

ANCHOR

- cable

1шт.

10

700114767

HINGE

- left

1шт.

11

700706805

CABLE

STOP - cable

1шт.

12

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

5/16-18 X 7-1/2 B

1шт.

13

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

1шт.

14

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

16

6124259

BUSHING

1шт.

17

700114787

STRAP

PIVOT - strap, right 14 foot

1шт.

700114786

STRAP

PIVOT - strap, right 16 foot

1шт.

18

494307C1

LATCH

HOOK - rubber

3шт.

19

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

20

776674

SUPPORT

BRACKET - anchor

2шт.

21

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

23

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

3шт.

24

700114779

BRACKET

MOUNTING - pivot

1шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

26

231-5146

FLANGE NUT,3/8"-16

2шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

31

700114782

CLIP

- shield

1шт.

32

8722910

BRACKET

- keeper

3шт.

33

700114778

SHIELD

COVER - u-joint, left 14 foot

1шт.

700114776

SHIELD

COVER - u-joint, left 16 foot

1шт.

34

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

3шт.

35

195-513

WASHER,#10

PLAIN WASHER #10

3шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

37

225-14110

NUT,#10-24

3шт.

38

700114781

ANGLE

- anchor

1шт.

39

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

40

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

3шт.

41

700114792

COVER

- left

1шт.

The serial # at the top of the page is incorrect. This came from researching ref #4 for a later s/n unit.

1шт.
