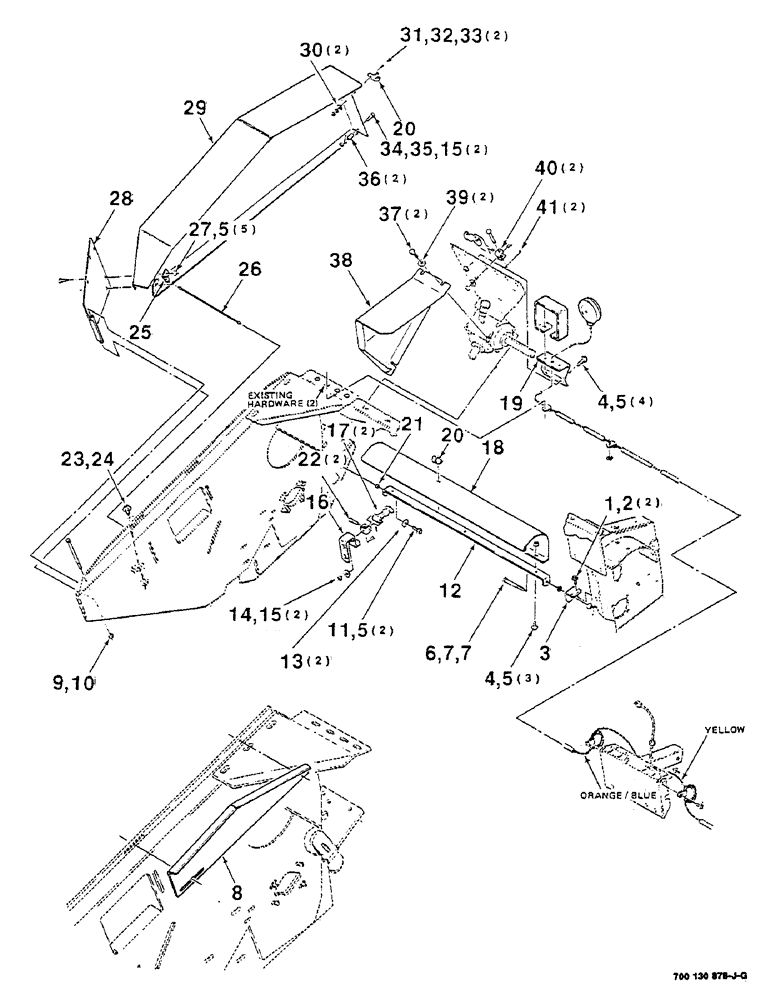

Запчасти Case IH 8840 (7-34) - SHIELD ASSEMBLIES (RIGHT) (S.N. CFH0095541 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

700114779

BRACKET

MOUNTING - pivot

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

14шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

8

700116526

SHIELD

S

1шт.

9

413-5120

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

5/16-18 X 7-1/2 B

1шт.

10

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

1шт.

11

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

12

700114773

STRAP

PIVOT - strap, right (14 foot)

1шт.

700114772

STRAP

PIVOT - strap, right (16 foot)

1шт.

13

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

14

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

15

425-105

NUT,5/16"-18, G5

4шт.

16

700121428

CLIP

- shield

1шт.

17

494307C1

LATCH

HOOK - rubber

2шт.

18

700121429

SHIELD

COVER-U-JOINT, right (14 foot)

1шт.

700121430

SHIELD

COVER-U-JOINT, right (16 foot)

1шт.

19

700114784

BRACKET

MOUNTING - flasher, right

1шт.

20

8722910

BRACKET

- keeper

2шт.

21

6124259

BUSHING

1шт.

22

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

23

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

25

700114675

ANCHOR

- cable

1шт.

26

700706805

CABLE

STOP - cable

1шт.

27

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

28

700114788

HINGE

- right

1шт.

29

700114794

SHIELD

- right

1шт.

30

195-513

WASHER,#10

NO. 10 PLAIN WASHER

2шт.

31

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR 60 M

2шт.

32

225-14110

NUT,#10-24

2шт.

33

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

190123C1

SPACER,1/2" Tube x 1"

BUSHING

2шт.

37

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

2шт.

38

700114791

COVER

- right

1шт.

39

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

40

776674

SUPPORT

BRACKET - anchor

2шт.

41

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.
