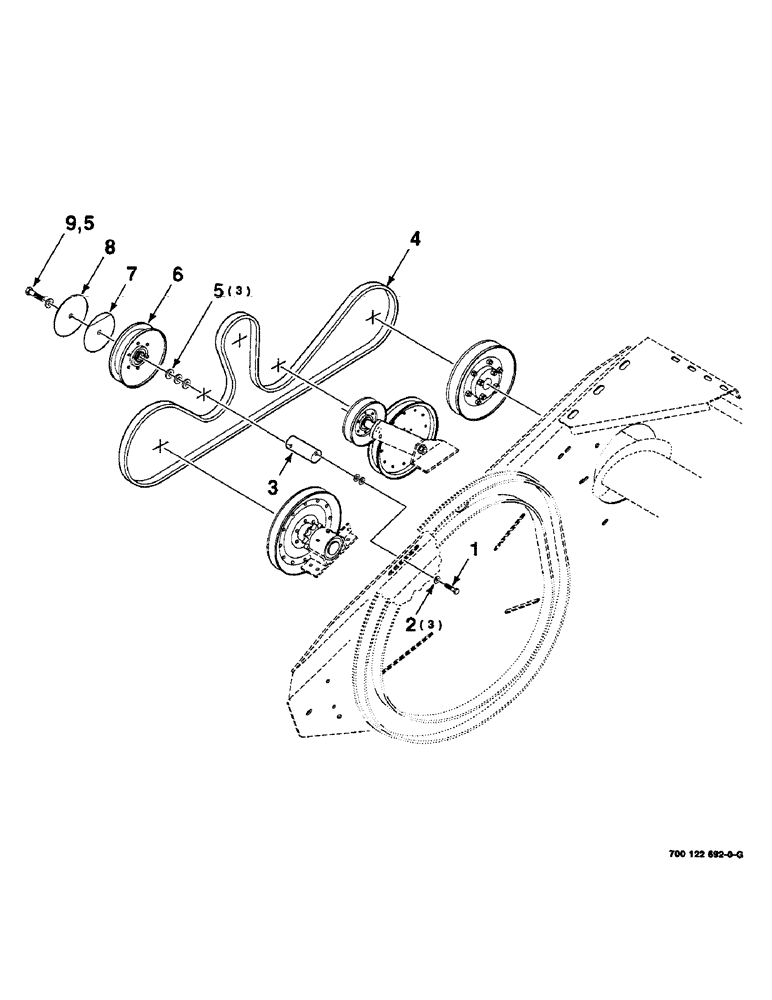

Запчасти Case IH 8840 (9-24) - REEL TORQUE INCREASE KIT, (700122692 REEL TORQUE INCREASE (88) - ACCESSORIES

700122692

KIT

REEL TORQUE INCREASE KIT COMPLETE

1шт.

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

3

700121456

ECCENTRIC

MOUNT - idler

1шт.

4

700710289

V-BELT,2775 mm L

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

6

566519R91

PULLEY

IDLER - flat

1шт.

7

6272785

SHIELD

- idler

1шт.

8

700710291

DECAL

- notice

1шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.
