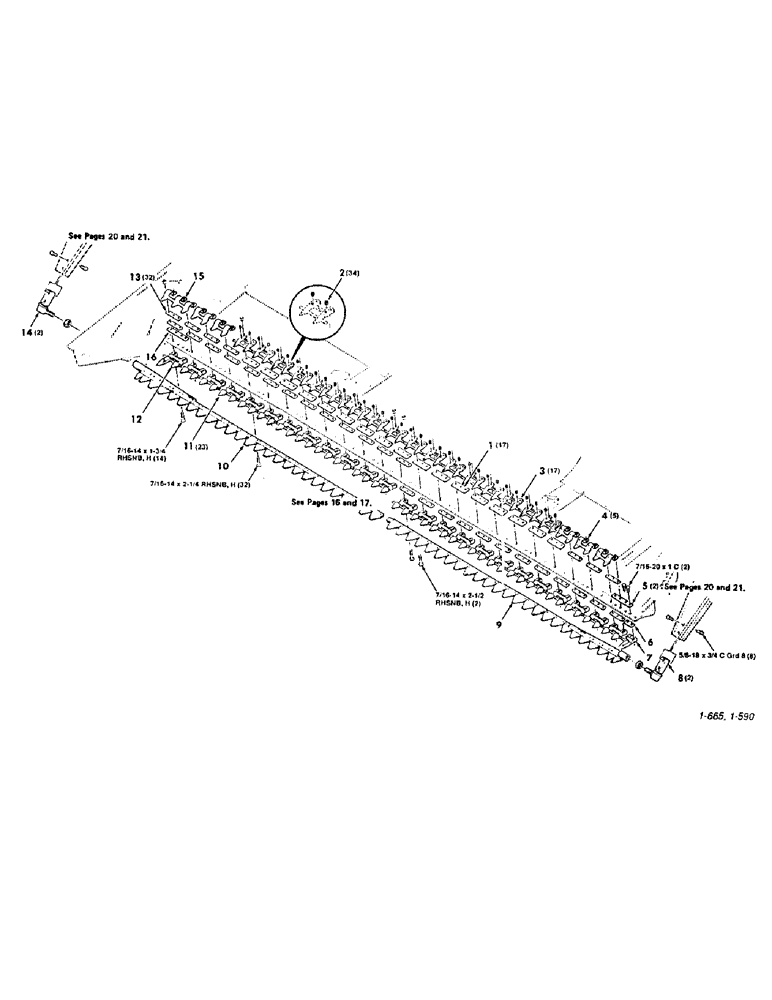

Запчасти Case IH 8830 (14) - SICKLE AND GUARD ASSEMBLY, ADJUSTABLE STUB (58) - ATTACHMENTS/HEADERS

1

700106256

PLATE

SHIM - upper

17шт.

2

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 x 1/2 OVAL POINT SOCKET SET SCREW W/PATCH LOCK

34шт.

3

700106782

FINGER

GUARD - double, stub with top adjustable set screws (2) (Packaged 25 per box)

17шт.

4

6834329

SPECIAL CLAMP

HOLDDOWN - high clearance

5шт.

5

6832240

PLATE

- filler

2шт.

6

6832273

SHIM

- lower, left

1шт.

7

49395

GUARD

- single, left, CLAMP - front harness

1шт.

8

8025363

SOCKET

ASSEMBLY - left

1шт.

9

6834352

KNIFE ASSY

SICKLE ASSEMBLY - left

1шт.

10

6834360

KNIFE ASSY

SICKLE ASSEMBLY - right

1шт.

11

49312

GUARD

- double, stub (Packaged 25 per box)

23шт.

12

748335

GUARD

- double, right end

1шт.

REF #12 - 748335 ... IF THIS GUARD IS TOO THICK ... CUSTOMER MIGHT NEED TO ORDER PART NUMBER FHO49270 FROM DPNI ... FHO49270 NARROWS DOWN TO A POINT AND IS A OPEN GUARD WITH NOTCHES IN IT. JRB 6/12/97

1шт.

13

6832307

SHIM

32шт.

14

8797102

SOCKET

ASSEMBLY - right

1шт.

15

6834337

SPECIAL CLAMP

HOLDDOWN - triple, high clearance

1шт.

16

700111956

PLATE

SHIM

1шт.

771501

BOLT,Hex, 7/16" - 20 x 1", Gr 5

7/16-20 x 1 C

2шт.

8701674

BOLT,Hex, 5/8" - 18 x 3/4", Gr 8

5/8-18 x 3/4 C GRADE 8

8шт.

700237

SQUARE BOLT

7/16-14 x 1-3/4 RHSNB

14шт.

7770662

BOLT

7/16-14 x 2-1/4 RHSNB

32шт.

1707215

BOLT

7/16-14 x 2-1/2 RHSNB

2шт.
