(10) - HEADER SUPPORT PIVOT AND POWERLINE ASSEMBLY

Запчасти Case IH 8830 (10) - HEADER SUPPORT PIVOT AND POWERLINE ASSEMBLY (58) - ATTACHMENTS/HEADERS

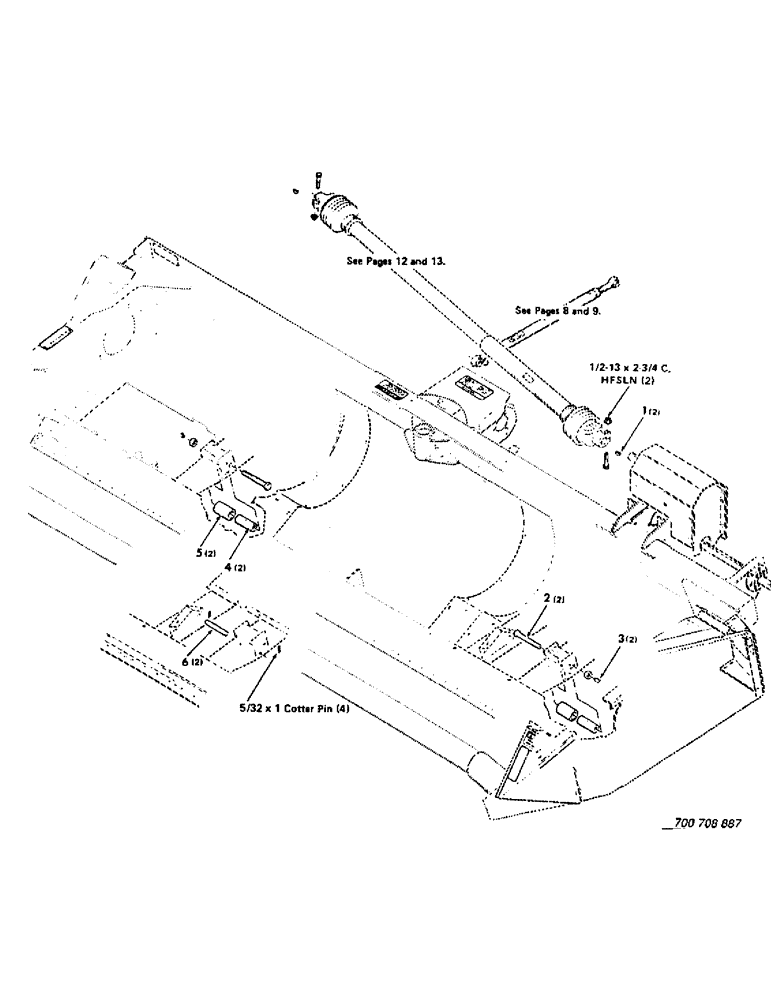

Схема запчастей Case IH 8830 - (10) - HEADER SUPPORT PIVOT AND POWERLINE ASSEMBLY (58) - ATTACHMENTS/HEADERS
3
4
2
1
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

761197

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5/16 x 1-3/8 WOODRUFF KEY

2шт.

2

700116883

SCREW

3/4-10 x 5-1/2 CAP SCREW - special

2шт.

3

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90 DEGREE ZERK

2шт.

4

700116884

BUSHING

- inner

2шт.

5

6185508

BUSHING

HUB - outer

2шт.

6

700111961

PIN

- safety

6шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

1шт.
