(44) - DECALS AND LOCATION DIAGRAM

Запчасти Case IH 8830 (44) - DECALS AND LOCATION DIAGRAM (90) - PLATFORM, CAB, BODYWORK AND DECALS

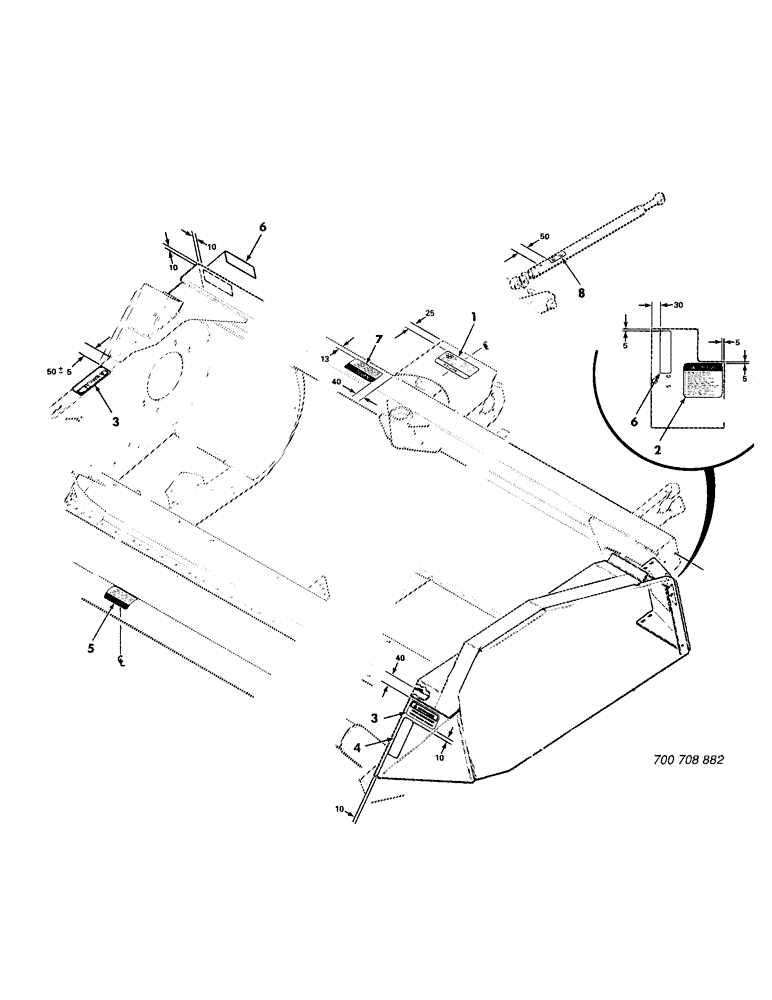

Схема запчастей Case IH 8830 - (44) - DECALS AND LOCATION DIAGRAM (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
1
3
4
2
6
8
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700700022

DECAL

- notice

1шт.

2

78311

DECAL

- caution, be careful, keep

1шт.

3

7778368

DECAL

- warning, keep hands

2шт.

4

878694

REFLECTOR

DECAL - reflector

1шт.

5

778522

DECAL

- notice

1шт.

6

878660

REFLECTOR

2шт.

7

7178767

DECAL

- notice

1шт.

8

700705829

DECAL

- guard angle

1шт.
