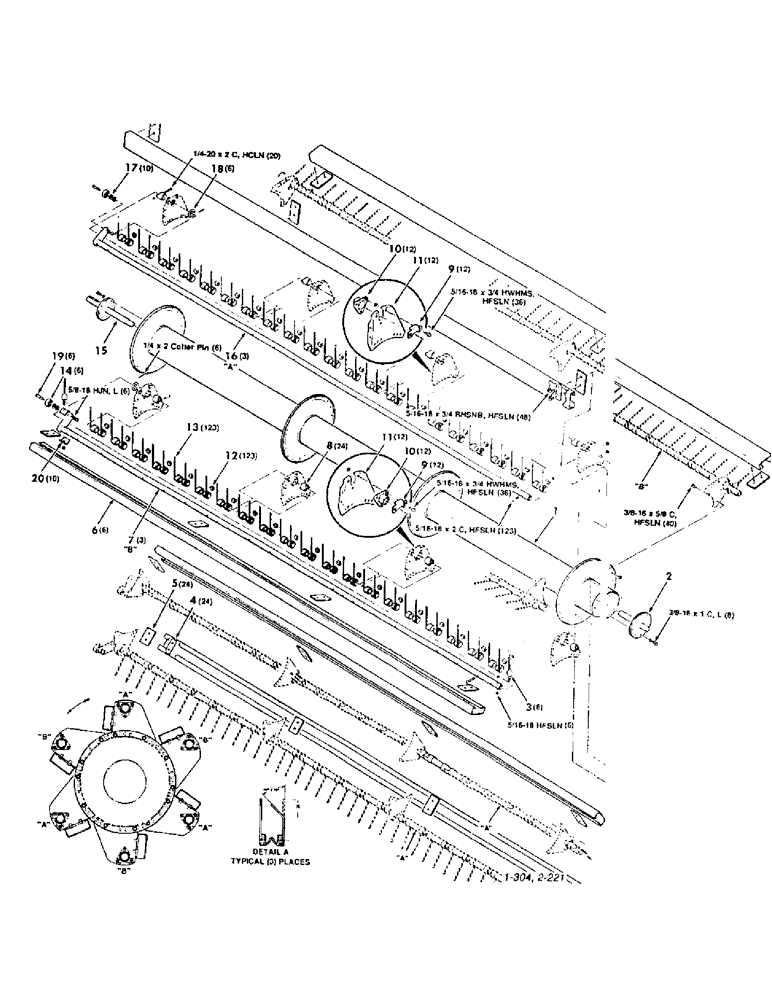

Запчасти Case IH 8830 (42) - REEL ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

1660896

REEL

TUBE

1шт.

2

1661884

SHAFT

- left

1шт.

3

756163

TINE

- single

6шт.

4

700114543

RETAINER

24шт.

5

700114544

LARGE PLATE

PLATE - bat

24шт.

6

700115430

BAT

- reel

6шт.

7

6832026

TUBE

TINE TUBE "B"

3шт.

8

6105159

NYLON BEARING,1.75"

BEARING - tine tube

24шт.

9

6831986

COVER

- bearing

24шт.

10

6105621

FLANGE

HOUSING - bearing

24шт.

11

700114555

SUPPORT

- bearing tine tube

24шт.

12

261024

CLIP

- tine

123шт.

13

750075

TINE

- double

123шт.

14

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

BEARING

16шт.

15

6832125

SHAFT

- drive, right

1шт.

16

6831911

TUBE

TINE TUBE "A"

3шт.

17

52233

BUSHING

MACHINERY BUSHING

12шт.

18

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

MACHINERY BUSHING

6шт.

19

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

CAP SCREW - special

6шт.

20

700117971

RETAINER

- tube, tine

10шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

24шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

48шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

123шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 C

48шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

8шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

72шт.

704783

SHIM,.020" Thk

1/4-20 HCLN

24шт.
