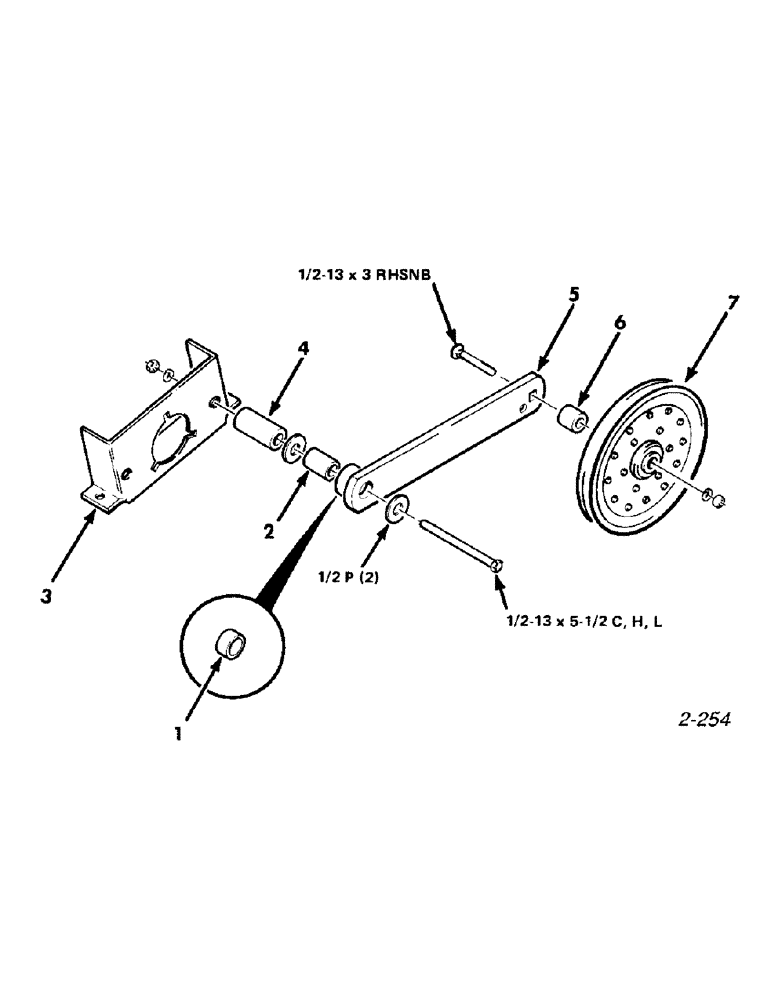

Запчасти Case IH 8830 (40) - REEL DRIVE TIGHTENER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

740217

BUSHING

- Oilite

1шт.

2

1661945

SPACER

1шт.

3

700107390

SUPPORT

- reel, left

1шт.

4

1661946

SPACER

1шт.

5

1661943

ARM

- tightener, belt

1шт.

6

6825012

TUBE,25.4 mm OD, 31.75 mm Length

SPACER

1шт.

7

54510

FRONT IDLER

IDLER - flat

1шт.

873497

HARDWARE

2-13 x 5-1/2 C

1шт.

7770076

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 RHSNB

1шт.
