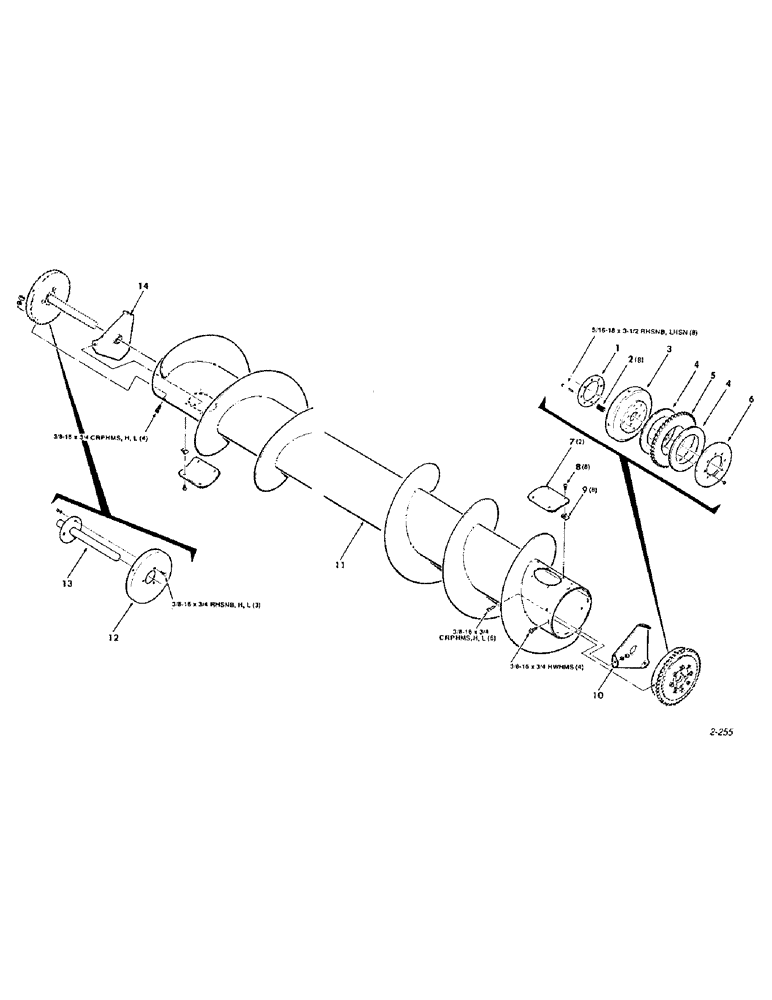

Запчасти Case IH 8830 (38) - AUGER AND CLUTCH ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

1661869

PLATE

- retainer

1шт.

2

58644

SPRING

- compression

8шт.

3

1661870

CLUTCH

BULKHEAD - clutch

1шт.

4

700710946

CLUTCH PLATE

DISC - friction

2шт.

5

700117789

SPROCKET ASSY.

SPROCKET - 50-P, 60 tooth

1шт.

6

1661872

PLATE

- end, clutch

1шт.

7

101055

PULLEY

- cover

2шт.

8

766303

SELF-TAP SCREW,Pan, #6 - 14 x 5/8"

NO. 14-10 x 5/8 TYPE A CRPHTFTS

8шт.

9

74518

NUT

NO. 14-10 TYPE J SPRING NUT

8шт.

10

1661874

PARTITION

BULKHEAD - left

1шт.

11

700117782

AUGER

WITH FLIGHTING

2шт.

12

1661866

SUPPORT

BULKHEAD - end, right

1шт.

13

1661863

SHAFT

- right

1шт.

14

6461735

SUPPORT

BULKHEAD - right

1шт.

7770399

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 5

5/16-18 x 3-1/2 RHSNB

8шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

700701905

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 CRPHMS

10шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

4шт.

231-1445

NUT,5/16"-18, GB

5/16-18 LIGHT HEX STOP NUT

8шт.
