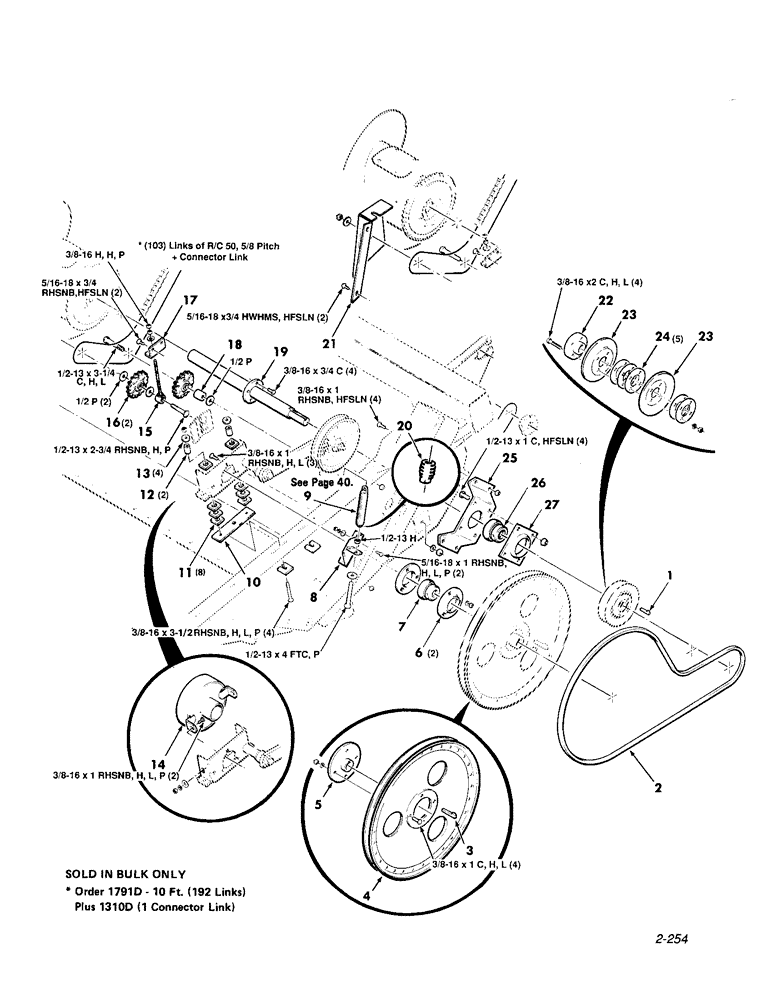

Запчасти Case IH 8830 (36) - AUGER AND REEL DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
61622
BUCKET TOOTH KEY
1/4 x 1/4 x 1-1/2 GIB KEY
1шт.
2
1710326
BELT,104.74" L
V-BELT 104.74" L
1шт.
3
61572
BUCKET TOOTH KEY
3/8 x 3/8 x 1-3/4 GIB KEY
1шт.
4
6114235
PULLEY
SHEAVE - reel drive
1шт.
5
6181499
WASHER
HUB - reel drive
1шт.
6
617863R1
FLANGED BEARING
- bearing
2шт.
7
713198
BALL BEARING
BEARING - spherical
1шт.
8
1661948
ANCHOR
- spring
1шт.
9
6189971
SPRING
ASSEMBLY (Includes plug)
1шт.
10
700108140
STRAP
- shim
1шт.
11
700108138
SHIM
- reel support
8шт.
12
700108137
TUBE,10.747 mm ID, 0.75" OD, 33 mm Length
2шт.
13
6178628
WASHER
2шт.
14
700108135
SHIELD
- reel
1шт.
15
6833073
BOLT,3/8" - 16 x 7"
DRAWBOLT
1шт.
16
7087398
DRIVE SPROCKET
SPROCKET - idler, 50-P, 17 tooth
2шт.
17
1661937
SUPPORT
BRACKET - support
1шт.
18
6833164
SPACER
- idler
1шт.
19
1661952
SHAFT
- auger drive
1шт.
20
6189989
PLUG
- spring
1шт.
21
1661951
SHIELD
- drive, auger
1шт.
22
6574859
HUB
- vari-sheave
1шт.
23
338244
SHEAVE
- half
2шт.
24
1661923
SHIM
- spacer
5шт.
25
1661938
SUPPORT
- bearing, auger
1шт.
26
51318
BEARING
- spherical
1шт.
27
163717
FLANGE
- bearing
1шт.
700708268
HARDWARE
3/8-16 x 2 C GRADE 8
4шт.
703199
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3/8-16 x 3/4 C
4шт.
703249
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C
4шт.
703959
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1/2-13 x 1 C
4шт.
703751
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1/2-13 x 3-1/4 C
1шт.
873455
SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd
1/2-13 x 4 FTC
1шт.
700013
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
5/16-18 x 3/4 RHSNB
2шт.
7700578
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5
5/16-18 x 1 RHSNB
2шт.
7770506
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
3/8-16 x 3-1/2 RHSNB
2шт.
7770712
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5
1/2-13 x 2-3/4 RHSNB
1шт.
7883325
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
5/16-18 x 3/4 HWHMS
2шт.
Выбрано товаров: 39
