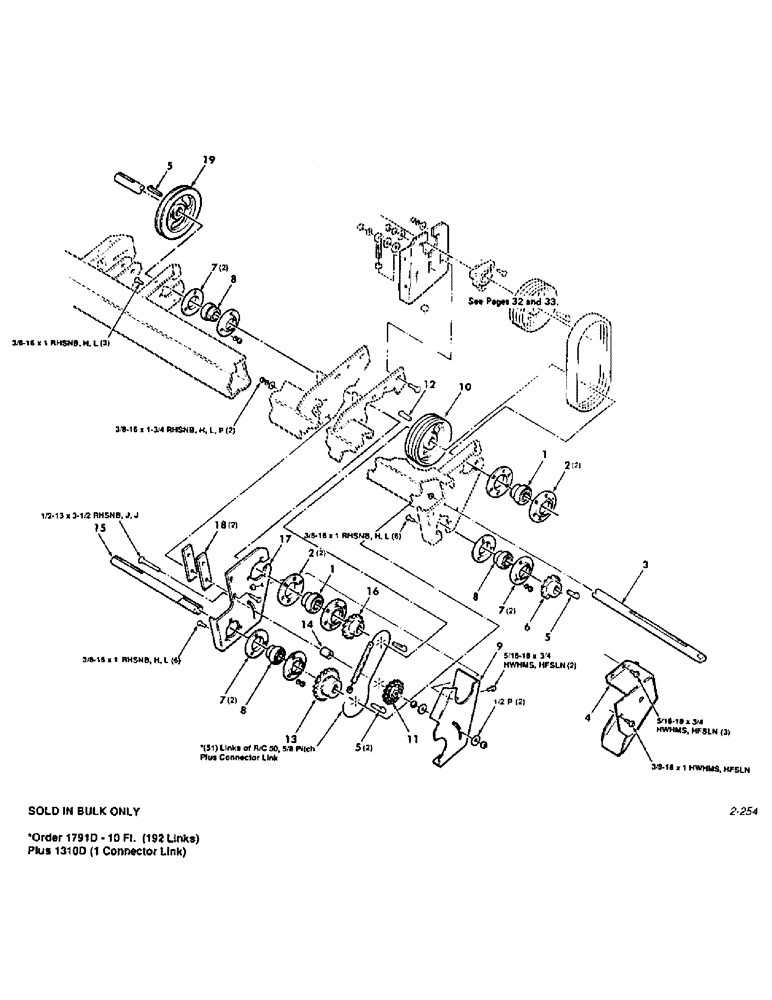

Запчасти Case IH 8830 (34) - DRIVE ASSEMBLY, SECONDARY (58) - ATTACHMENTS/HEADERS

1

710004

PTO SHAFT

- spherical

2шт.

2

825620C1

RETAINER

- bearing

4шт.

3

700117781

SHAFT

- cross

1шт.

4

700119523

SHIELD

- side

1шт.

5

761213

KEY

5/16 x 5/16 x 1-3/4 GIB KEY

4шт.

6

1707157

SPROCKET ASSY.

SPROCKET, 50-P, 15 tooth

1шт.

7

50534

FLANGED BEARING

- bearing

6шт.

8

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

3шт.

9

700119211

SHIELD

- chain

1шт.

10

700108054

SHEAVE

- triple

1шт.

11

7087398

DRIVE SPROCKET

SPROCKET - idler, 50-P, 17 tooth

1шт.

12

761205

KEY

5/16 x 5/16 x 2 GIB KEY

1шт.

13

700119556

SPROCKET ASSY.

SPROCKET, 50-P, 23 tooth

1шт.

14

6466213

SPACER

1шт.

15

700119520

SHAFT

1шт.

16

700703437

SPROCKET

50-P, 17 tooth

1шт.

17

700119212

SUPPORT

- bearing

1шт.

18

700119521

SHIM

2шт.

19

6821425

SHEAVE

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

15шт.

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

3/8-16 x 1-3/4 RHSNB

2шт.

7770738

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 x 3-1/2 RHSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

5шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.
