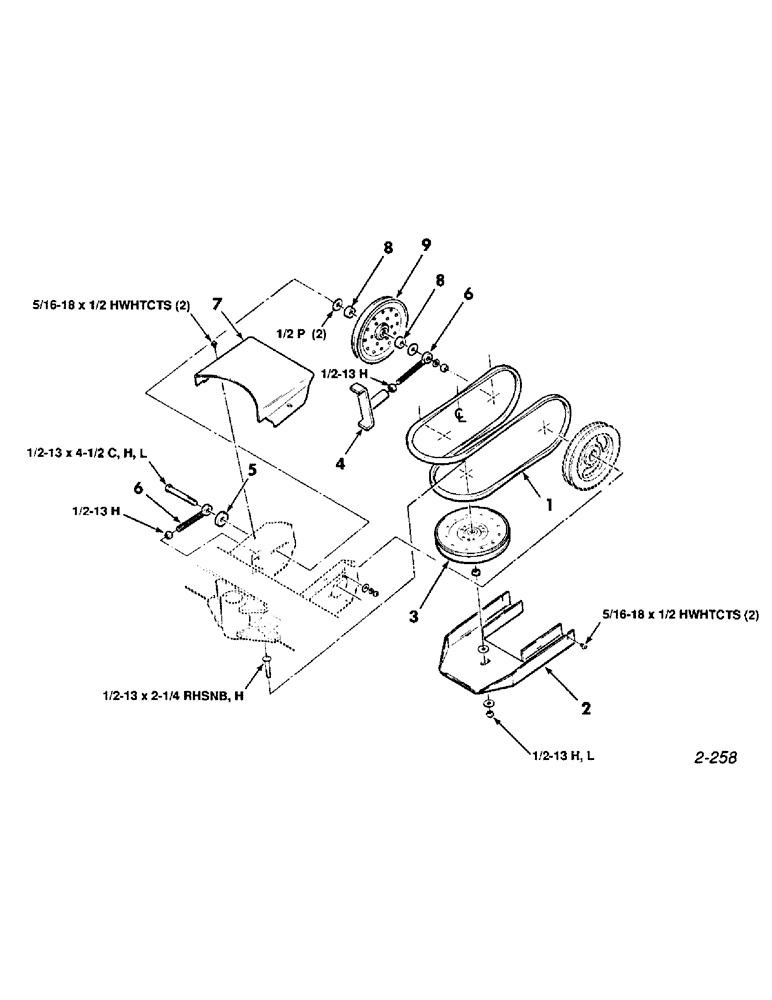

Запчасти Case IH 8830 (31) - SICKLE DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

1710292

BELT,95.99" L

V-BELT 95.99" L

1шт.

2

1661979

SHIELD

- idler

1шт.

3

7054281

PULLEY

SHEAVE - idler

1шт.

4

700100913

BASE

- tightener

1шт.

5

1661850

SPACER

1шт.

6

51200284

BOLT (MACHINE)

1/2-13 DRAWBOLT

2шт.

7

1661980

SHIELD

- drive, sickle

1шт.

8

6235071

BUSHING

SPACER

2шт.

9

1710334

PULLEY

SHEAVE - idler

1шт.

703223

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 C

1шт.

7770704

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 RHSNB

1шт.

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 x 1/2 HWHTCTS

4шт.
