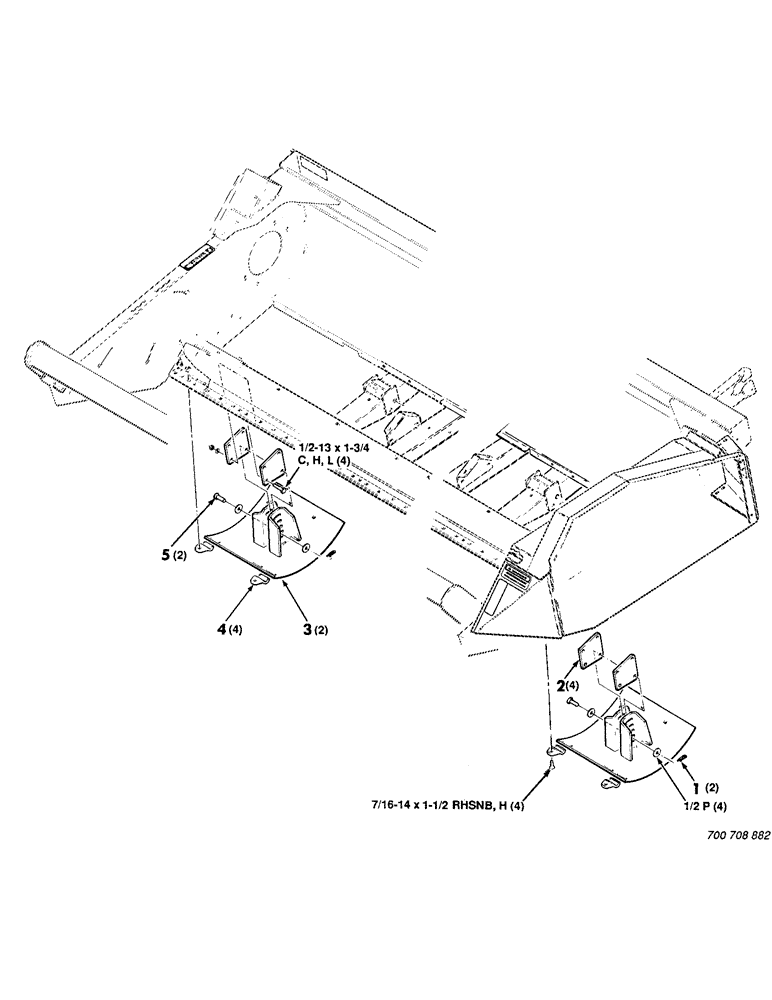

Запчасти Case IH 8830 (29) - SKID SHOE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

S120261

PIN

.149 HAIRPIN COTTER

2шт.

2

1662074

PLATE

- support, shoe

4шт.

3

700102386

SHOE

- skid

2шт.

4

6453799

CLIP

- shoe

4шт.

5

63875

KNIFE

1/2 x 2-1/2 CLEVIS PIN

2шт.

700112

CONCAVE

7/16-14 x 1-1/2 RHSNB

4шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

4шт.
