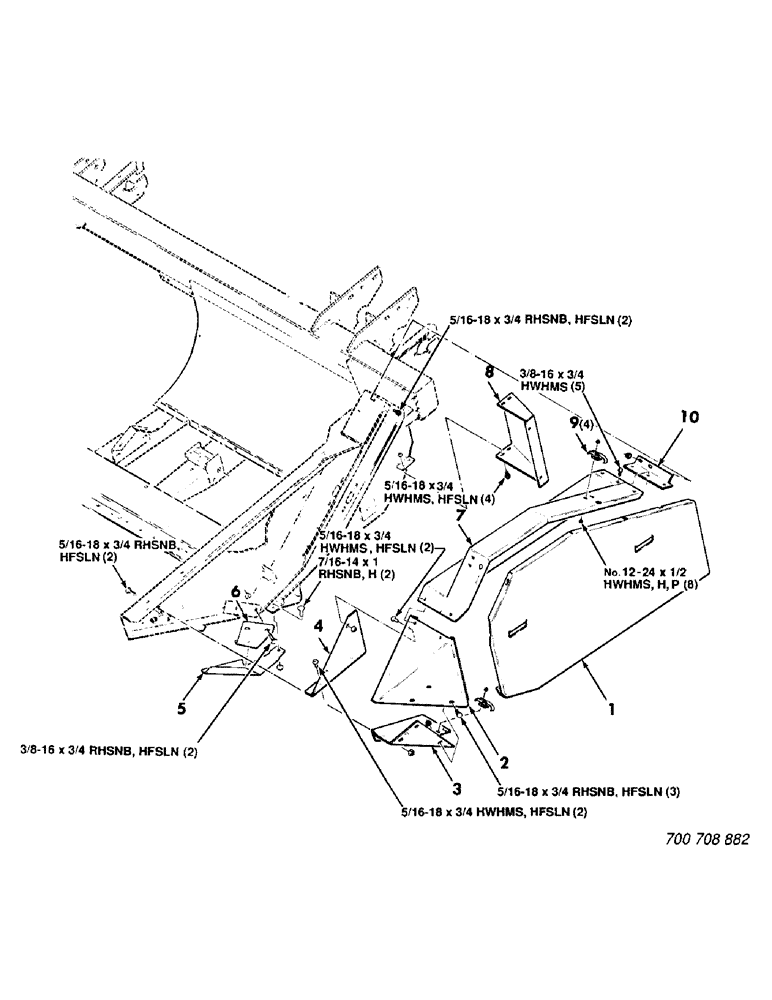

Запчасти Case IH 8830 (26) - SHIELDS ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700119507

SHIELD

- left

1шт.

2

700119505

SHIELD

- deflector

1шт.

3

700119502

PANEL

- deflect, lower

1шт.

4

1662085

SHIELD

- inner

1шт.

5

6830715

DIVIDER

- shoe, left

1шт.

6

6830723

BRACKET

- left

1шт.

7

700119527

SHIELD

- cover

1шт.

8

700119504

CAP

- rear

1шт.

9

700706849

LATCH

4шт.

10

700119500

SUPPORT

- cover

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

7шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

2шт.

700492

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G5. Full Thd

7/16-14 x 1 RHSNB

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

8шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

5шт.

700070227

SCREW,Hex Wash Hd, #12-24 x 1/2"

NO. 12-24 x 1/2 HWHMS

8шт.
