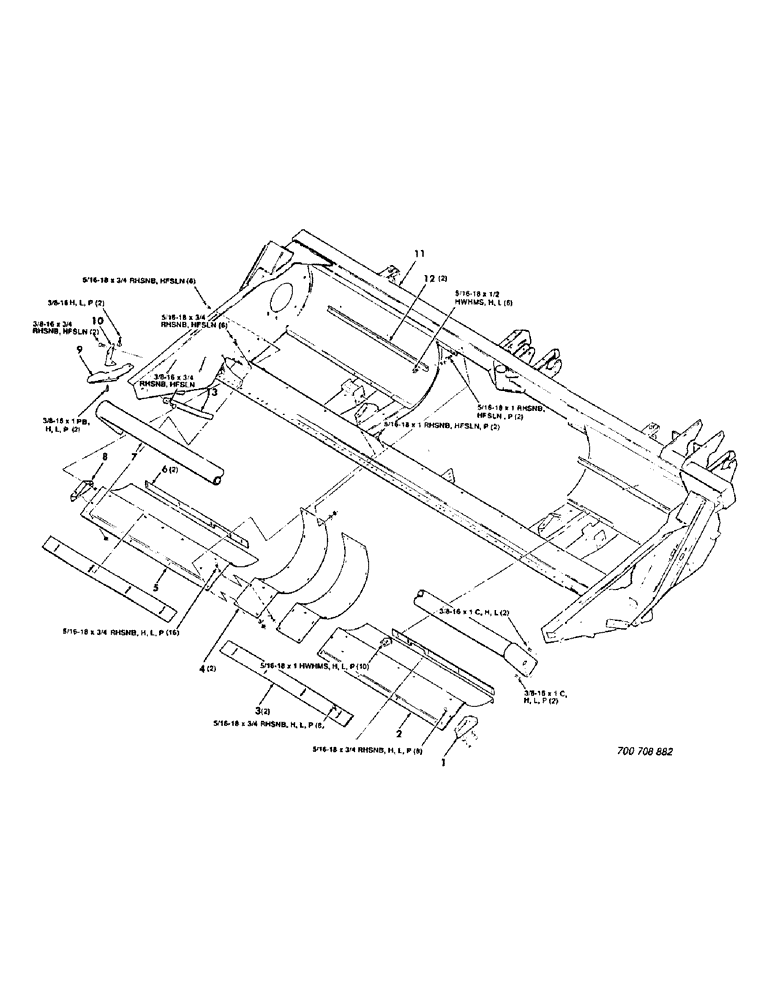

Запчасти Case IH 8830 (24) - HEADER FRAME, LEAN BAR AND SHIELDS ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

1662090

SUPPORT

MOUNTING - pan, left

1шт.

2

700117792

PAN

- lower, left

1шт.

3

700117795

STRIPPER

- front

2шт.

4

700117797

PAN

EXTENSION - pan

2шт.

5

700117793

PANEL

PAN - lower, right

1шт.

6

700117794

STRIPPER

- bottom

2шт.

7

1662122

BAR

LEAN BAR

1шт.

8

1662091

SUPPORT

MOUNTING - pan, right

1шт.

9

6830749

DIVIDER

- right

1шт.

10

6830756

BRACKET

- right

1шт.

11

700117808

HEAT-EXCHANGER

FRAME - header

1шт.

12

700108093

CHANNEL

- stripper

2шт.

13

262626

RETAINING WIRE

- deflector

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

44шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

768226

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 RHSNB

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

6шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

12шт.

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 PB

2шт.
