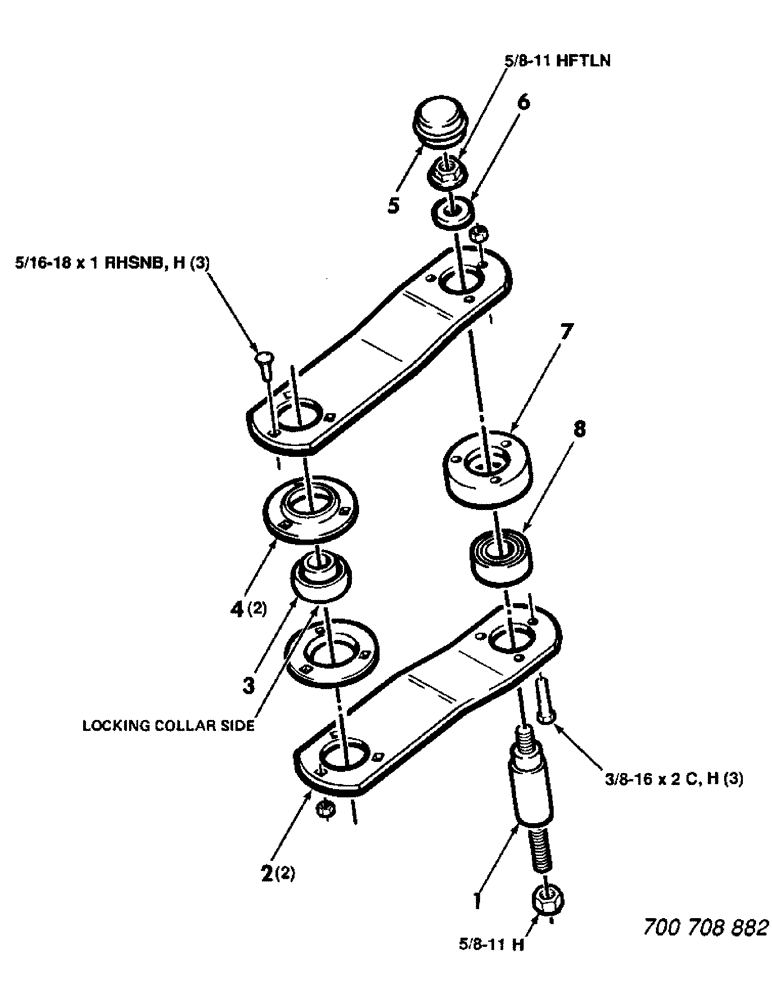

Запчасти Case IH 8830 (23) - PITMAN STABILIZER ARM ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700119517

SHAFT

- vertical

1шт.

2

700119516

ARM

- pivot

1шт.

3

700700760

SPHERICAL BEARING,19.05 mm ID x 47 mm OD x 34.13 mm

BEARING - spherical

1шт.

4

713800

FLANGE

- bearing

2шт.

5

700709032

CAP

- grease

1шт.

6

700119514

WASHER

- special

1шт.

7

700119515

HUB

CARRIER - hub, bearing

1шт.

8

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - cylindrical

1шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 C

3шт.

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

3шт.

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.
