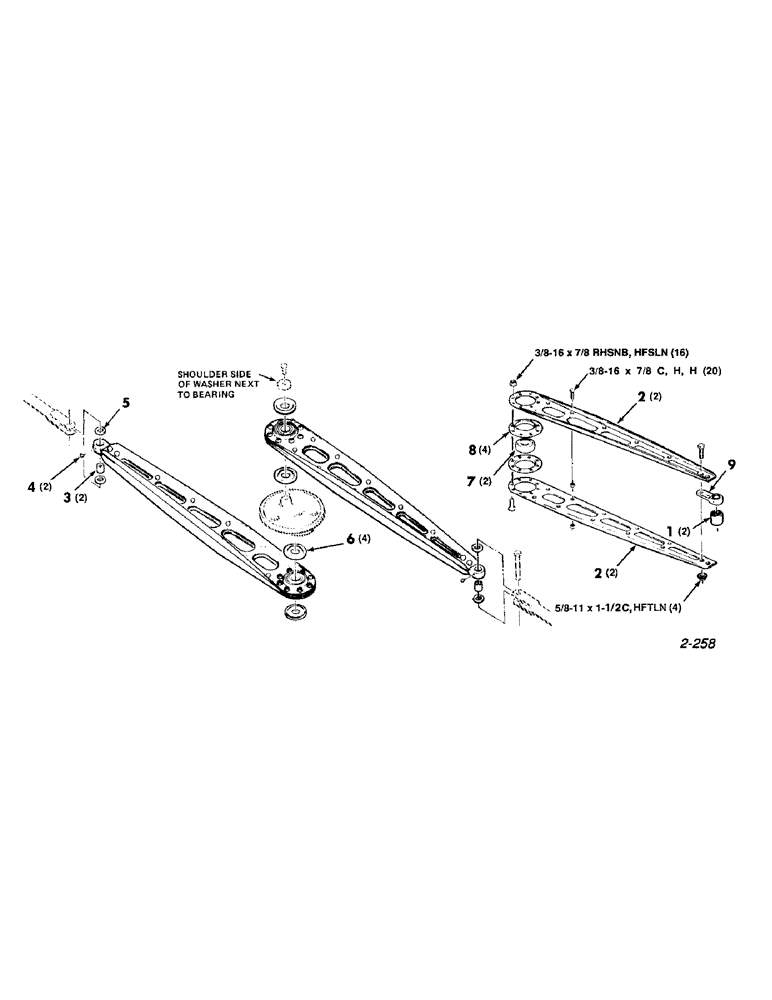

Запчасти Case IH 8830 (22) - PITMAN ASSEMBLY, PRIMARY (58) - ATTACHMENTS/HEADERS

1

8050536

NEEDLE BEARING

- needle

2шт.

2

700102847

PITMAN

- half, primary

2шт.

3

8051021

RACE

- inner

2шт.

4

77057

1/4-28 x 90 DEGREE ZERK

2шт.

5

816132

WASHER

RACE - thrust

4шт.

6

1707702

RING

- bearing

4шт.

7

8050643

BALL BEARING,39.99mm ID x 90mm OD x 23mm W

- spherical (Less collar)

2шт.

8

700703236

FLANGE

- bearing

4шт.

9

700102846

CONNECTING ROD

MOUNTING - bearing (Without bearing)

2шт.

772376

BOLT,3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 C

20шт.

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

4шт.

768432

AXLE-SHAFT, ARTICULA,Sq Nk, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 RHSNB

16шт.

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN

4шт.
