(20) - SWAYBAR ASSEMBLY, LEFT AND RIGHT

Запчасти Case IH 8830 (20) - SWAYBAR ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS

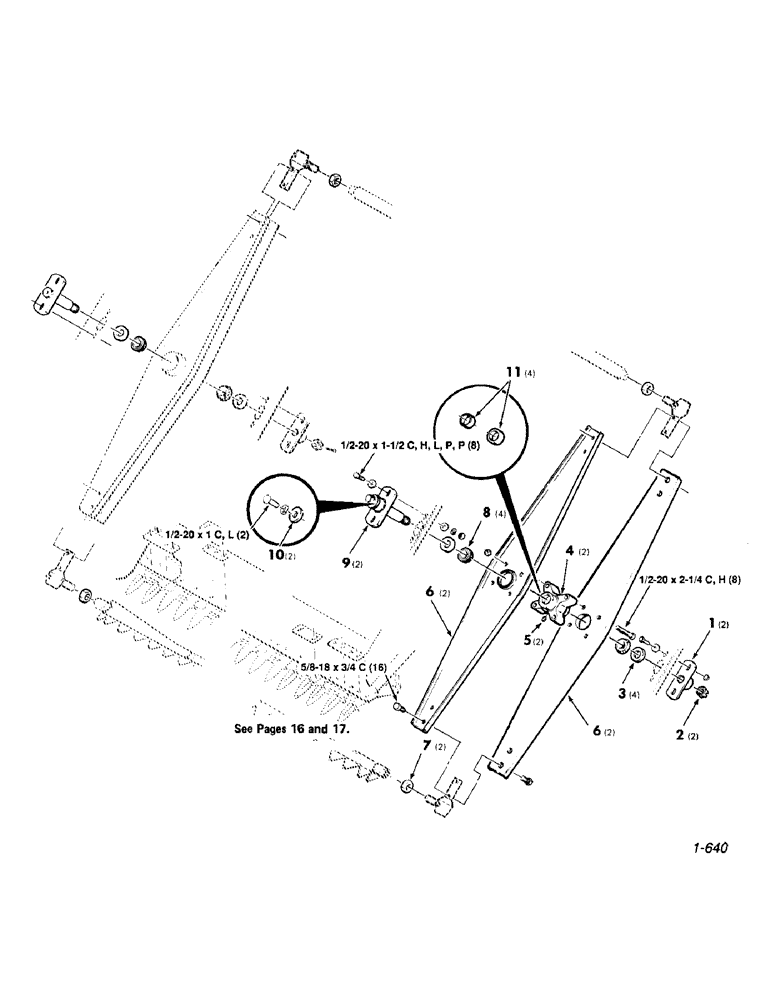

Схема запчастей Case IH 8830 - (20) - SWAYBAR ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS
2
8
7
4
9
11
5
6
1
6
3
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6832497

LARGE PLATE

PLATE - swaybar pin

2шт.

2

7774581

SLOTTED NUT

1-1/8-12 SHN

2шт.

3

6832489

WASHER

- special

4шт.

4

6832588

HUB

- swaybar (Includes cups)

2шт.

5

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45 DEGREE ZERK

2шт.

6

1661983

BAR

SWAYBAR - half

4шт.

7

7774417

LOCK NUT

7/8-18 HJN - special

4шт.

8

7714728

BEARING

CONE

4шт.

9

6832661

PIN

- swaybar

2шт.

10

6832471

WASHER

WASHER

2шт.

11

7710064

BEARING, CUP

BEARING CUP

4шт.

8701716

BOLT,Hex, 1/2" - 20 x 1", Gr 8

1/2-20 x 1 C

2шт.

701276

HOUSING

1/2-20 x 1-1/2 C

8шт.

NLS

NO LONGER SERVICED

1/2-20 x 2-1/4 C

8шт.

8701674

BOLT,Hex, 5/8" - 18 x 3/4", Gr 8

5/8-18 x 3/4 C GRADE 8

16шт.
