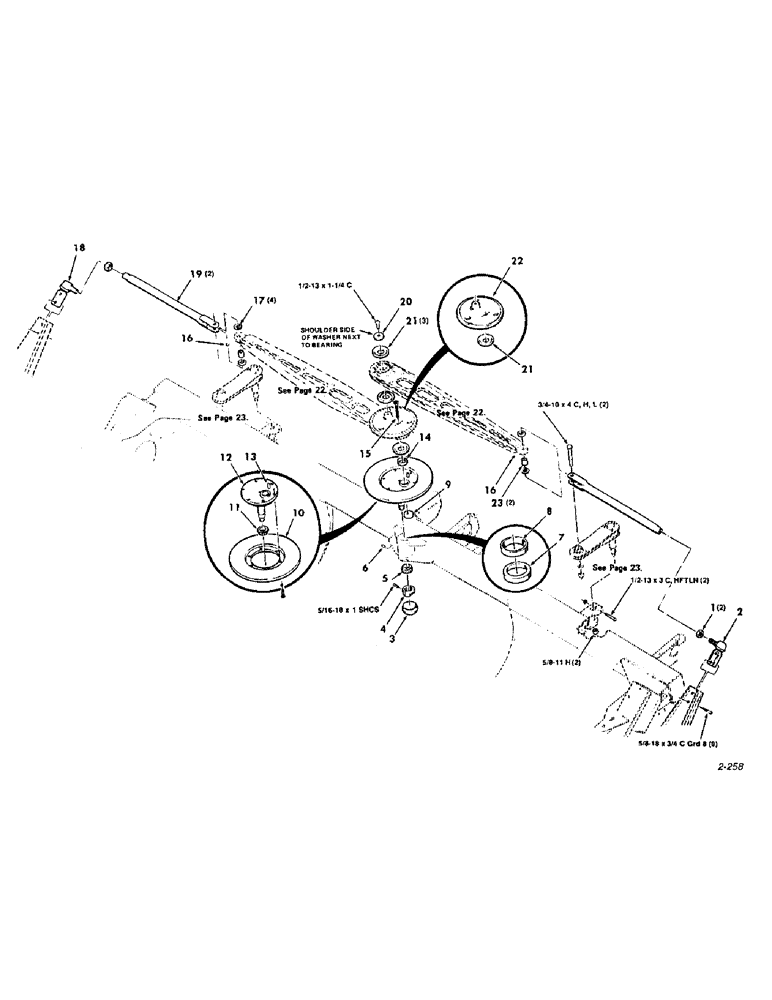

Запчасти Case IH 8830 (18) - PITMAN AND SICKLE DRIVE ASSEMBLY, DOUBLE (58) - ATTACHMENTS/HEADERS

1

7774417

LOCK NUT

7/8-14 HEX JAM NUT

2шт.

2

8025363

SOCKET

ASSEMBLY - left

1шт.

3

26674

CAP

HUB CAP

1шт.

4

700117837

CLAMP

NUT - clamp

1\шт.

5

710475

ROLLER BEARING

BEARING CONE

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

7

710459

CUP

BEARING CUP - lower

1шт.

8

453012R1

BEARING CUP

- upper

1шт.

9

6832695

WASHER

- special

1шт.

10

6832653

SHEAVE

- flywheel

1шт.

11

8050528

ROLLER BEARING

1шт.

12

6832265

SPINDLE

- flywheel

1шт.

13

761494

KEY

1/4 x 1/4 x 1-5/16 KEY - special

1шт.

14

1708056

WASHER

- neoprene

1шт.

15

8701740

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 20 x 3 1/2"

SCREW - special

1шт.

16

77057

1/4-28 x 90 DEGREE ZERK

2шт.

17

816132

WASHER

RACE - thrust

4шт.

18

8797102

SOCKET

ASSEMBLY - right

1шт.

19

1661977

TUBE

- Pitman, secondary

2шт.

20

6832471

WASHER

WASHER - Pitman

1шт.

21

1707702

RING

- bearing

4шт.

22

6832406

CRANK

- double, Pitman

1шт.

23

8051021

RACE

BEARING - race, inner

2шт.

7701568

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4 C

6шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 C

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

8701674

BOLT,Hex, 5/8" - 18 x 3/4", Gr 8

5/8-18 x 3/4 C GRADE 8

8шт.

703488

SCREW

3/4-10 x 4 C

2шт.

7773245

BOLT,5/16" - 18 x 1", Full Thd

5/16-18 x 1 HSHCS

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

4шт.

704742

ROD

1/2-13 HFTLN

2шт.
