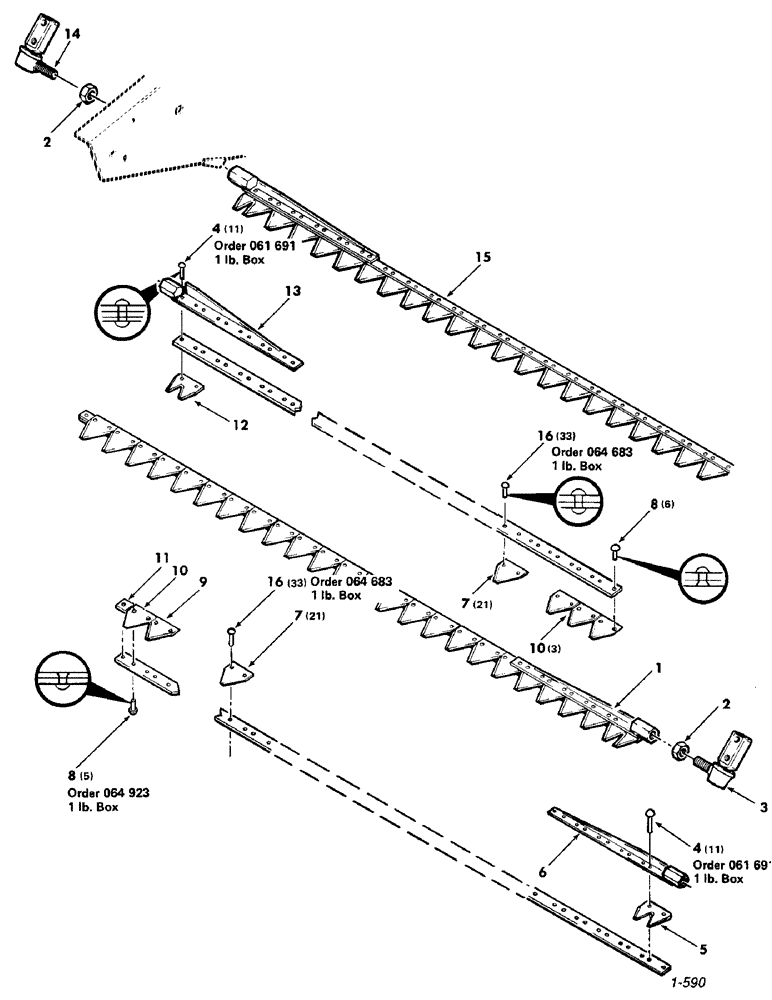

Запчасти Case IH 8830 (16) - SICKLE ASSEMBLY, DOUBLE (58) - ATTACHMENTS/HEADERS

1

6834352

KNIFE ASSY

SICKLE ASSEMBLY - left

1шт.

2

7774417

LOCK NUT

7/8-18 HEX JAM NUT

2шт.

3

8025363

SOCKET

ASSEMBLY - left

1шт.

4

64071

RIVET

NO. 5-1/2 x 7/8 OVAL HEAD RIVET (Packaged 1 lb. per box; Order no. 064691)

22шт.

5

748145

KNIFE SECTION

SECTION - end, left

1шт.

6

6821078

HEAD

- sickle, left

1шт.

7

49262

KNIFE SECTION

SECTION - sickle, smooth

42шт.

8

64469

RIVET,Oval Hd, .211" x 7/16"

NO. 5-1/2 x 7/16 OVAL HEAD RIVET (Packaged 1 lb. per box; order no. 064923)

11шт.

9

748327

CUTTER BAR

SECTION - sickle (Countersunk drill from top)

1шт.

10

748319

CUTTER BAR

SECTION - sickle, end

4шт.

11

6821052

SHIM

- wear

1шт.

12

51200278

KNIFE SECTION

SECTION - double, right end

1шт.

13

6821136

HEAD

- sickle, right

1шт.

14

8797102

SOCKET

ASSEMBLY

1шт.

15

6834360

KNIFE ASSY

SICKLE ASSEMBLY - right

1шт.

16

990817R91

RIVET

NO. 5-1/2 x 9/16 OVAL HEAD RIVET (Packaged 1 lb. per box; order no. 064683)

66шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
