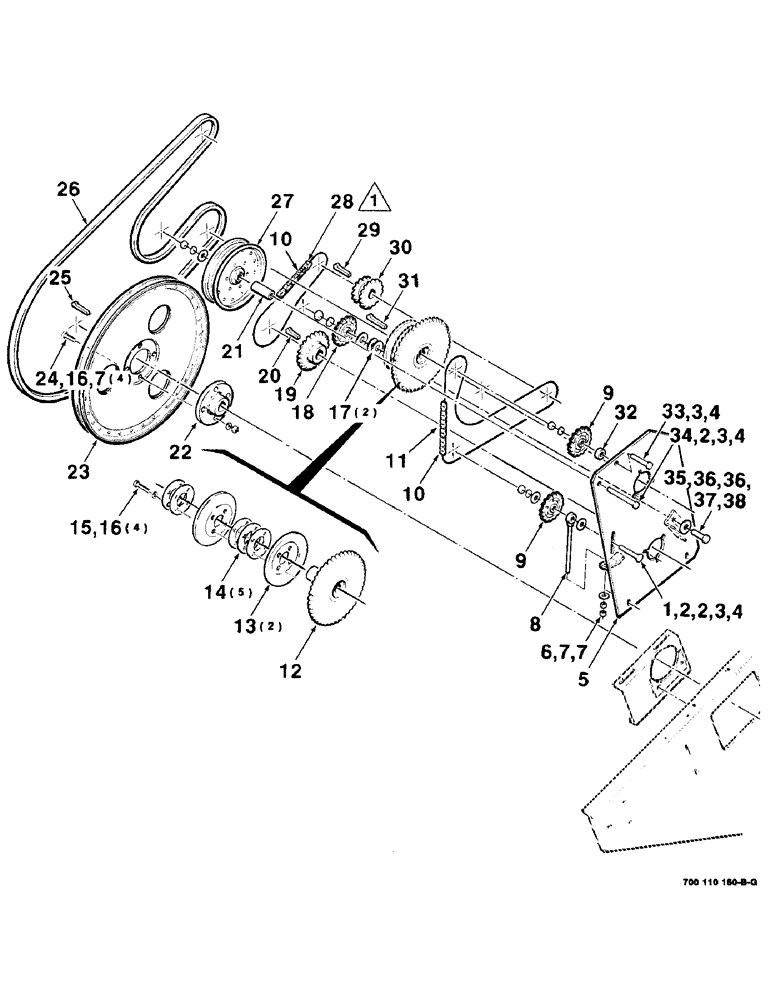

Запчасти Case IH 8830 (2-10) - REEL DRIVE ASSEMBLY (09) - CHASSIS

1

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

1шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

700110644

PLATE

WA

1шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

7

425-106

NUT,3/8"-16, Cl 5

6шт.

8

700110653

ROD

DRAWBOLT WA

1шт.

9

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

2шт.

10

1310D

LINK

#50 CONNECTOR LINK

2шт.

11

851774

ROLLER

CHAIN - #50 (101 links - no sub)

1шт.

12

700110655

SPROCKET

W/HUB - 44 tooth

1шт.

13

338244

SHEAVE

- half

2шт.

14

1661923

SHIM

- spacer

5шт.

15

28-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 8

3/8-24 X 1/2 C GRD 8

4шт.

16

492-11038

LOCK WASHER,3/8"

8шт.

17

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

18

631905R91

SPROCKET

- idler, 17 tooth

1шт.

19

700110568

SPROCKET

WA - 24 tooth

1шт.

20

249-1

KEY

1/4 X 1/4 X 1-3/4 GIB KEY

1шт.

21

700110572

SPACER

1шт.

22

1660901

HUB

- sheave, reel

1шт.

23

6114235

PULLEY

SHEAVE - drive, reel

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

25

761429

BUCKET TOOTH KEY

3/8 X 3/8 X 2 GIB KEY

1шт.

26

857219

V-BELT,0.88" W x 132.20" L

1шт.

27

54510

FRONT IDLER

IDLER - flat

1шт.

28

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

ROLLER CHAIN - #50 (10 foot bulk length)

1шт.

REF 28: 50 LINKS PLUS 1 CONNECTOR LINK

1шт.

29

761155

BUCKET TOOTH KEY

1/4 X 1/4 X 2 GIB KEY

1шт.

30

700110566

SPROCKET

WA - double, 14 & 16 tooth

1шт.

31

61416

KEY

1/4 X 1/4 X 2-3/4 GIB KEY

1шт.

32

700110624

SPACER

1шт.

33

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

34

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

35

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

36

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

37

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

38

425-1010

NUT,5/8"-11, G5

1шт.
