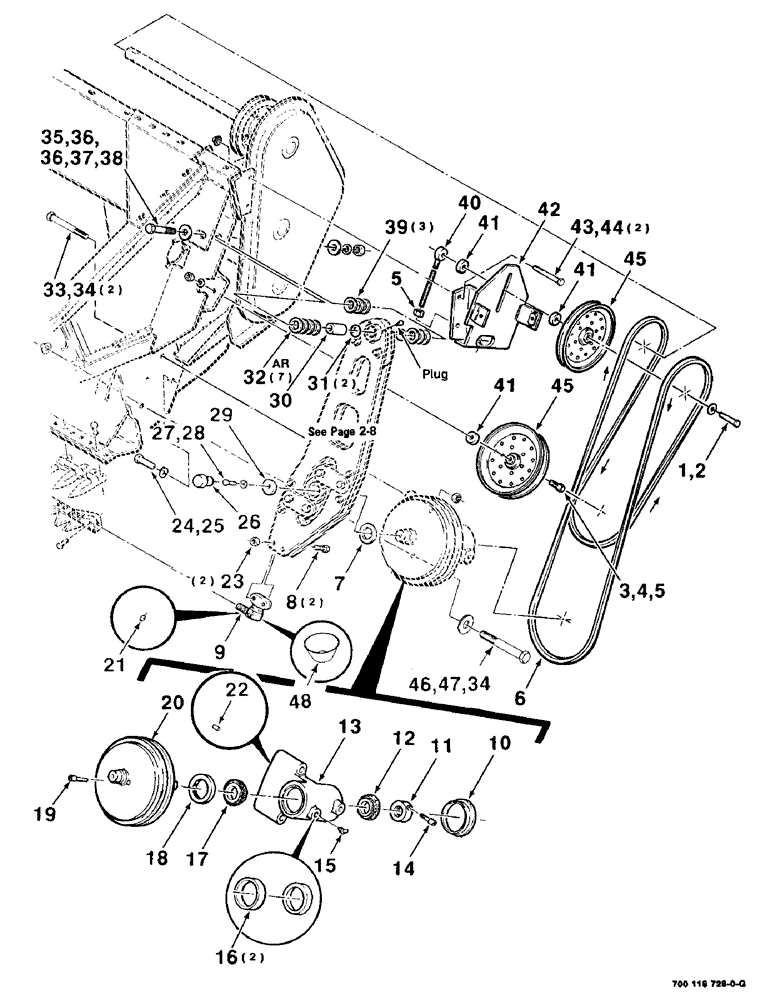

Запчасти Case IH 8830 (2-06) - SICKLE DRIVE ASSEMBLY (09) - CHASSIS

1

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

700705430

V-BELT,3860.80 mm L

1шт.

7

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

8

700705454

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 8

1/2-20 X 1-3/4 FTC

2шт.

9

700110728

SOCKET

ASSEMBLY (Includes items 21 & 48)

1шт.

10

700705444

DUST CAP

CAP - end

1шт.

11

700110743

NUT

NUT - clamp

1шт.

12

912735R91

ROLLER BEARING,1.6255" ID x 1.1563"

- cone

1шт.

13

700110737

HOUSING

- Pitman (Includes items 16 & 22)

1шт.

14

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS

1шт.

15

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

16

170254R1

BEARING, CUP

CUP - bearing

2шт.

17

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING - cone

1шт.

18

8044083

SEAL

- external

1шт.

19

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

1шт.

20

700110739

CRANK

- Pitman (Includes item 19)

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

22

20154R1

DOWEL,5/16" x 7/8"

5/16 X 7/8 DOWEL PIN

1шт.

23

329-118

NUT,1/2"-20, G8

2шт.

24

114-612

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

700708708

CAP

- grease

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

6581052

WASHER

1шт.

30

700110745

BUSHING,19.18mm ID x 32.09mm OD x 68.56mm L

1шт.

31

7030257

O-RING

2шт.

32

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

7шт.

33

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 X 6-1/2 C

2шт.

34

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

3шт.

35

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4-10 X 4-1/2 C

1шт.

36

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

37

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

38

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

39

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

3шт.

40

700110746

SPECIAL BOLT,Draw

DRAWBOLT

1шт.

41

700100063

SPACER

3шт.

42

700110749

SUPPORT

- idler and shield

1шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.

44

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

45

1710334

PULLEY

SHEAVE - idler

2шт.

46

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

47

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

48

700702253

SEAL

1шт.
