(2-04) - U-JOINT ASSEMBLY, THIS U-JOINT SUPERSEDES THE U-JOINT ON PAGE 2-2

Запчасти Case IH 8830 (2-04) - U-JOINT ASSEMBLY, THIS U-JOINT SUPERSEDES THE U-JOINT ON PAGE 2-2 (09) - CHASSIS

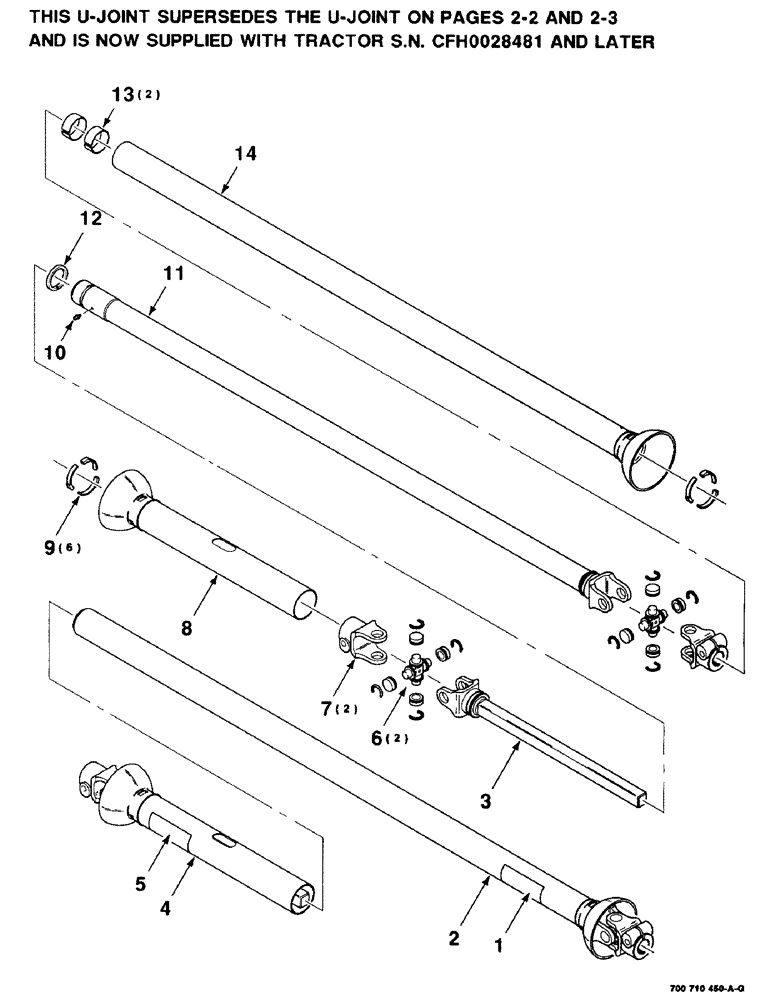

Схема запчастей Case IH 8830 - (2-04) - U-JOINT ASSEMBLY, THIS U-JOINT SUPERSEDES THE U-JOINT ON PAGE 2-2 (09) - CHASSIS
9
1
13
4
6
12
10
2
8
5
7
3
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708583

DECAL

- safety

1шт.

2

700710539

REAR PTO ASSY

U-JOINT ASSEMBLY - implement half

1шт.

3

700710534

FORK

YOKE AND SHAFT

1шт.

4

700710536

FRONT PTO ASSY

U-JOINT ASSEMBLY - tractor half

1шт.

5

80672C1

DECAL

- safety

1шт.

6

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

2шт.

7

757716

CLAMP

YOKE - clamp

2шт.

8

700710535

SHIELD

- outer

1шт.

9

700706872

CLIP

BEARING - shield

6шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

700710537

FORK

YOKE, tube and sleeve

1шт.

12

700708956

BEARING

- nylon

1шт.

13

700710058

SUPPORT

- sleeve

2шт.

14

700710538

SHIELD

- inner

1шт.
