(9-20) - END PANEL REPLACEMENT KIT, 12, S/N CFH0029001 THRU CFH0029878, 14, S/N CFH0029001 THRU CFH0029878

Запчасти Case IH 8830 (9-20) - END PANEL REPLACEMENT KIT, 12, S/N CFH0029001 THRU CFH0029878, 14, S/N CFH0029001 THRU CFH0029878 (09) - CHASSIS

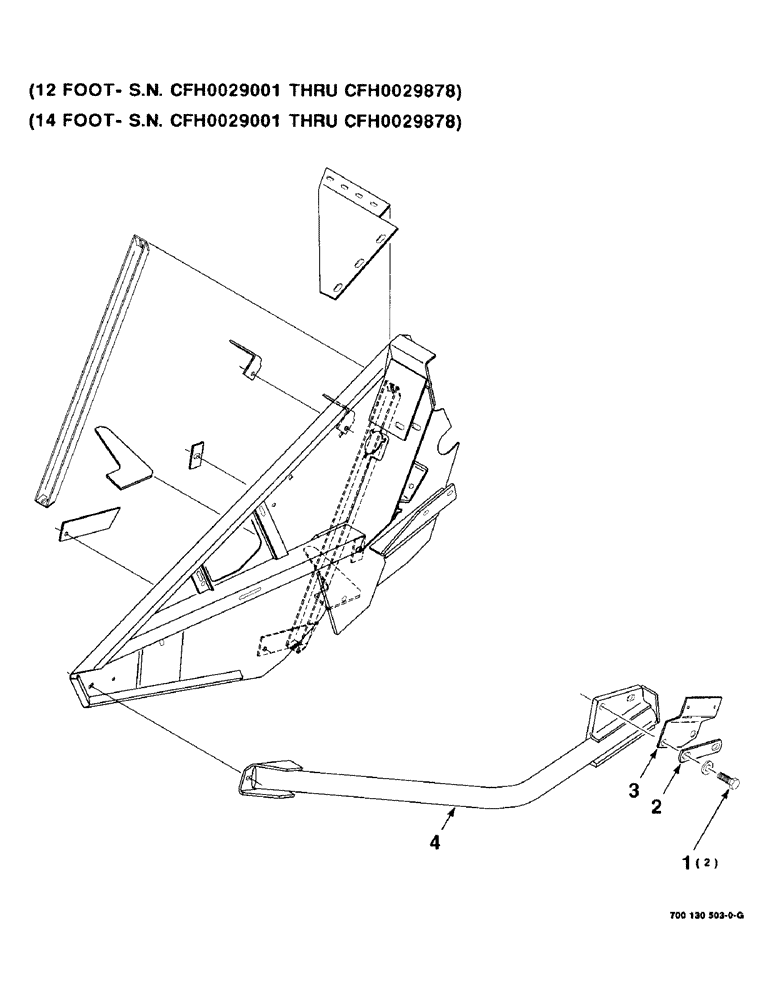

Схема запчастей Case IH 8830 - (9-20) - END PANEL REPLACEMENT KIT, 12, S/N CFH0029001 THRU CFH0029878, 14, S/N CFH0029001 THRU CFH0029878 (09) - CHASSIS
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700130503

KIT

END PANEL KIT COMPLETE

1шт.

1

114-612

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

2

700124675

STRAP

1шт.

3

700124688

SUPPORT

ANGLE WA - support

1шт.

4

700124647

GUARD

PIPE WA - guard

1шт.
