(9-16) - U-JOINT CLUTCH KIT, HK60587 U-JOINT CLUTCH KIT COMPLETE

Запчасти Case IH 8830 (9-16) - U-JOINT CLUTCH KIT, HK60587 U-JOINT CLUTCH KIT COMPLETE (09) - CHASSIS

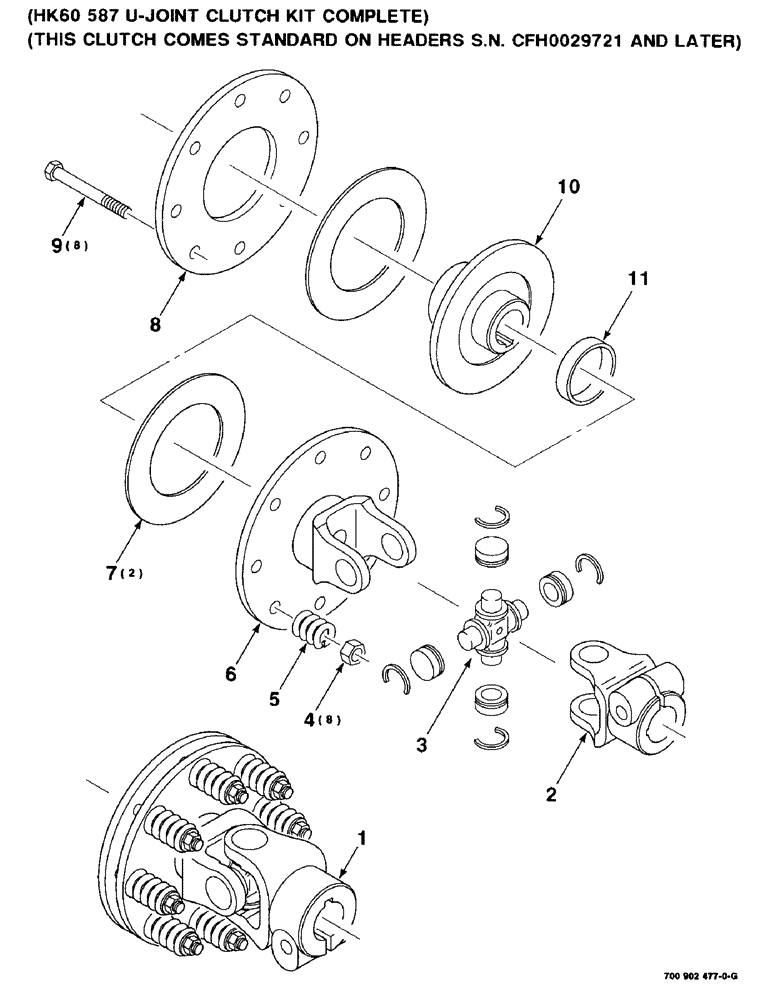

Схема запчастей Case IH 8830 - (9-16) - U-JOINT CLUTCH KIT, HK60587 U-JOINT CLUTCH KIT COMPLETE (09) - CHASSIS
10
2
3
11
4
6
1
5
7
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60587

U-JOINT CLUTCH KIT COMPLETE

1шт.

1

700710451

CLUTCH

ASSEMBLY - complete

1шт.

2

757716

CLAMP

YOKE

1шт.

3

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

1шт.

4

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

8шт.

5

700710774

SPRING KIT

(Set of 8 springs)

1шт.

6

700710773

FORK

YOKE WITH FLANGE

1шт.

7

700710770

DISC

FRICTION DISC

2шт.

8

700710912

BUSHING

PLATE

1шт.

9

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

10

700710771

HUB

WITH FLANGE

1шт.

11

700710911

BUSHING

1шт.
