Запчасти Case IH 8830 (9-14) - ADJUSTABLE STUB GUARD KIT, 2 FOOT, 700115807 STUB GUARD KIT COMPLETE, 2 FOOT (09) - CHASSIS

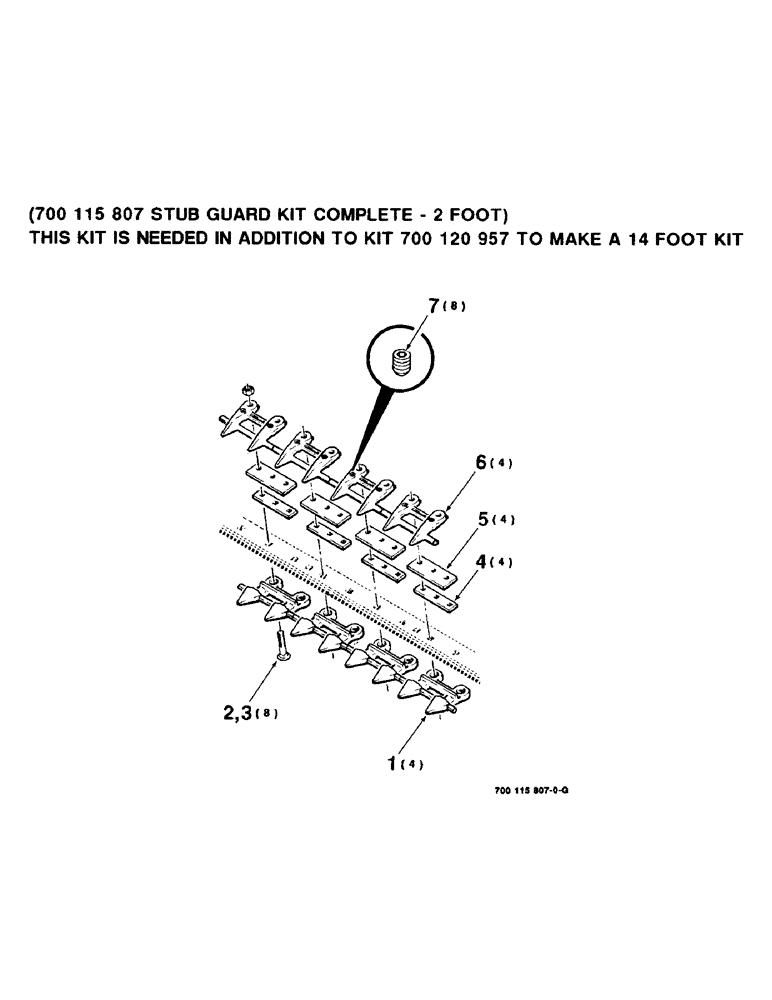

Схема запчастей Case IH 8830 - (9-14) - ADJUSTABLE STUB GUARD KIT, 2 FOOT, 700115807 STUB GUARD KIT COMPLETE, 2 FOOT (09) - CHASSIS
3
1
4
7
6
5
2

Артикул

Название

Примечание

Количество

700115807

KIT

STUB GUARD KIT COMPLETE - 2 foot

1шт.

1

49312

GUARD

- stub, double (Packaged 25 per box)

4шт.

2

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

8шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

8шт.

4

700111956

PLATE

SHIM

4шт.

5

700106256

PLATE

SHIM - upper

4шт.

6

700702736

GUARD

- double, stub, top adjust. (Includes item 7 - packaged 25 per box)

4шт.

7

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 x 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

8шт.

Выбрано товаров: 8
