Запчасти Case IH 8830 (9-12) - ADJUSTABLE STUB GUARD KIT, 12 FOOT, 700120957 STUB GUARD KIT COMPLETE (09) - CHASSIS

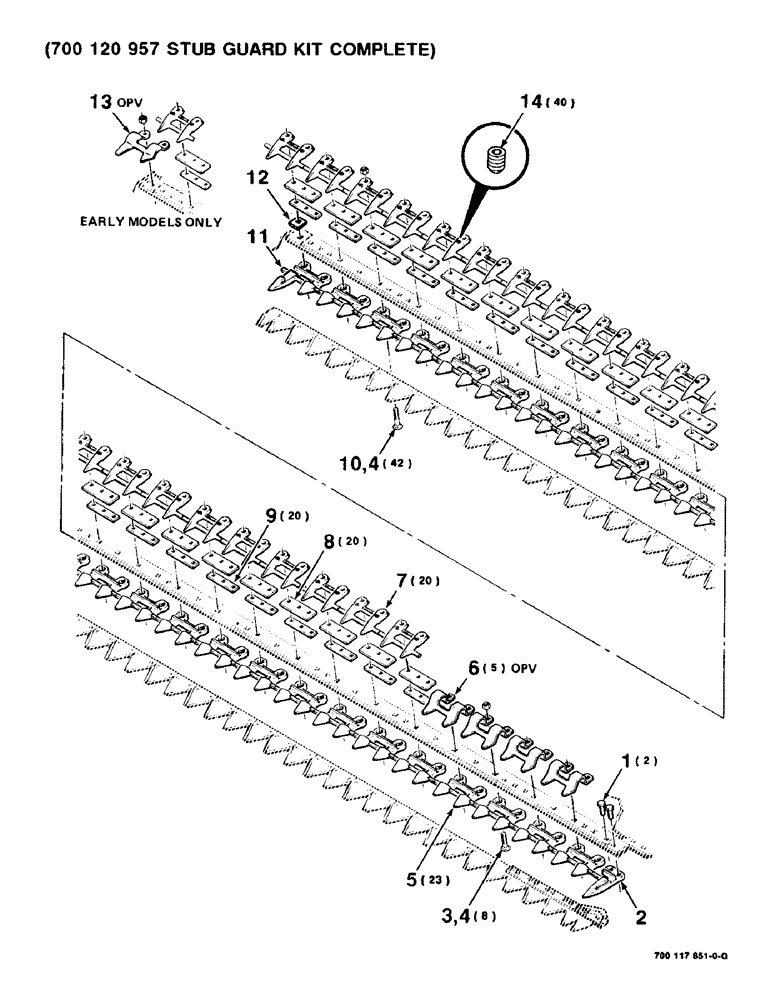

Схема запчастей Case IH 8830 - (9-12) - ADJUSTABLE STUB GUARD KIT, 12 FOOT, 700120957 STUB GUARD KIT COMPLETE (09) - CHASSIS
1
4
3
8
14
12
10
4
2
11
13
5
9
7
6

Артикул

Название

Примечание

Количество

700120957

GUARD

STUB GUARD KIT COMPLETE

1шт.

1

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

2

NLS

NO LONGER SERVICED

- single

1шт.

3

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

8шт.

4

425-107

NUT,7/16"-14, G5

7/16-14 H

50шт.

5

49312

GUARD

- stub, double (Packaged 25 per box)

23шт.

6

6586622

GUARD

HOLDDOWN - stub guard, high clearance

5шт.

7

700702736

GUARD

- double, stub, top adjust.

20шт.

8

700106256

PLATE

SHIM - upper

20шт.

9

700111956

PLATE

SHIM

20шт.

10

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

42шт.

11

6210652

GUARD

- stub, double, right

1шт.

12

429464

SPACER

- cutter bar

1шт.

13

6479448

LARGE PLATE

PLATE - stub, right

1шт.

14

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

40шт.

Выбрано товаров: 15
