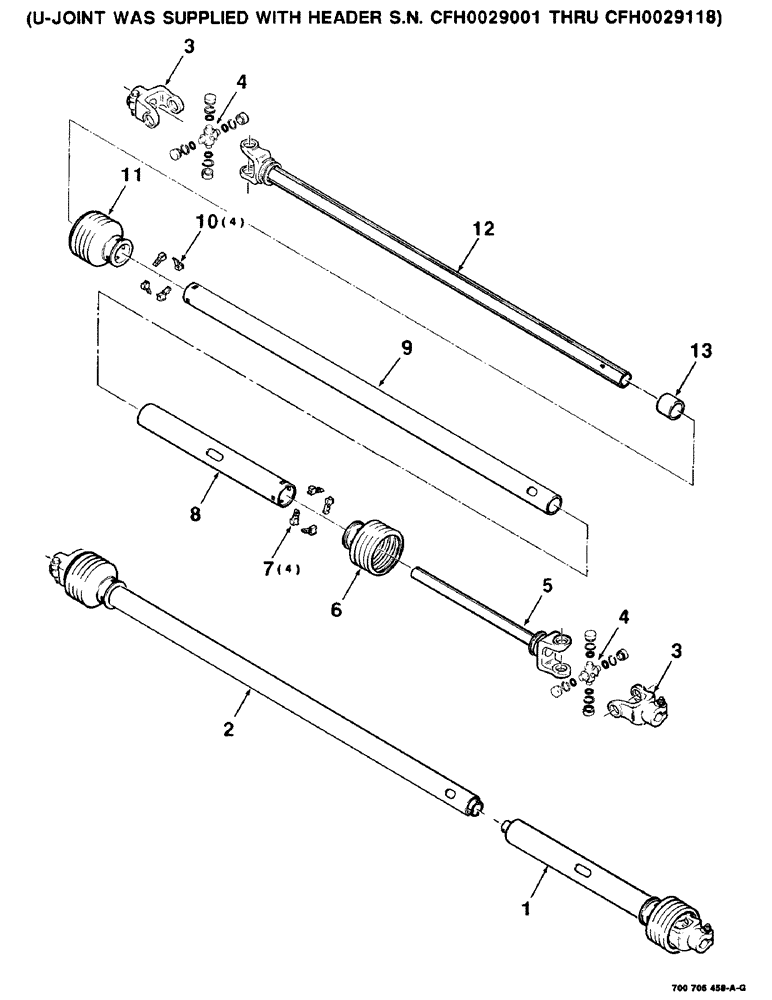

Запчасти Case IH 8830 (2-02) - U-JOINT ASSEMBLY, U-JOINT WAS SUPPLIED WITH HEADER SERIAL NUMBER CFH0029001 THRU CFH0029118 (09) - CHASSIS

1

700706165

PTO

U-JOINT ASSEMBLY - outer half (Substitute 700710536 & 700710539)

1шт.

700710536

FRONT PTO ASSY

U-JOINT ASSEMBLY - tractor half

1шт.

700710539

REAR PTO ASSY

U-JOINT ASSEMBLY - implement half

1шт.

2

700706171

PROPELLER SHAFT

U-JOINT ASSEMBLY - inner half (Substitute 700710536 & 700710539)

1шт.

700710536

FRONT PTO ASSY

U-JOINT ASSEMBLY - tractor half

1шт.

700710539

REAR PTO ASSY

U-JOINT ASSEMBLY - implement half

1шт.

3

757716

CLAMP

YOKE - clamp

2шт.

4

757443

U-JOINT SPIDER

JOUNRAL REPAIR KIT

2шт.

5

700706161

UNIVERSAL JOINT

YOKE AND INNER TUBE

1шт.

6

700706162

SHIELD

BELL - flex, outer

1шт.

7

700706164

BEARING COVER

BEARING - shield, outer

4шт.

8

700706163

FLEXIBLE HOSE

SHIELD - outer

1шт.

9

700706169

FLEXIBLE HOSE

SHIELD - inner

1шт.

10

700706170

SHIELD

BEARING - shield, inner

4шт.

11

700706167

SHIELD

BELL - flex, inner

1шт.

12

700706166

YOKE

AND OUTER TUBE

1шт.

13

700706172

CLIP

BEARING - shield support

1шт.
