Запчасти Case IH 8830 (7-26) - WINDROW FORMING SHIELDS (09) - CHASSIS

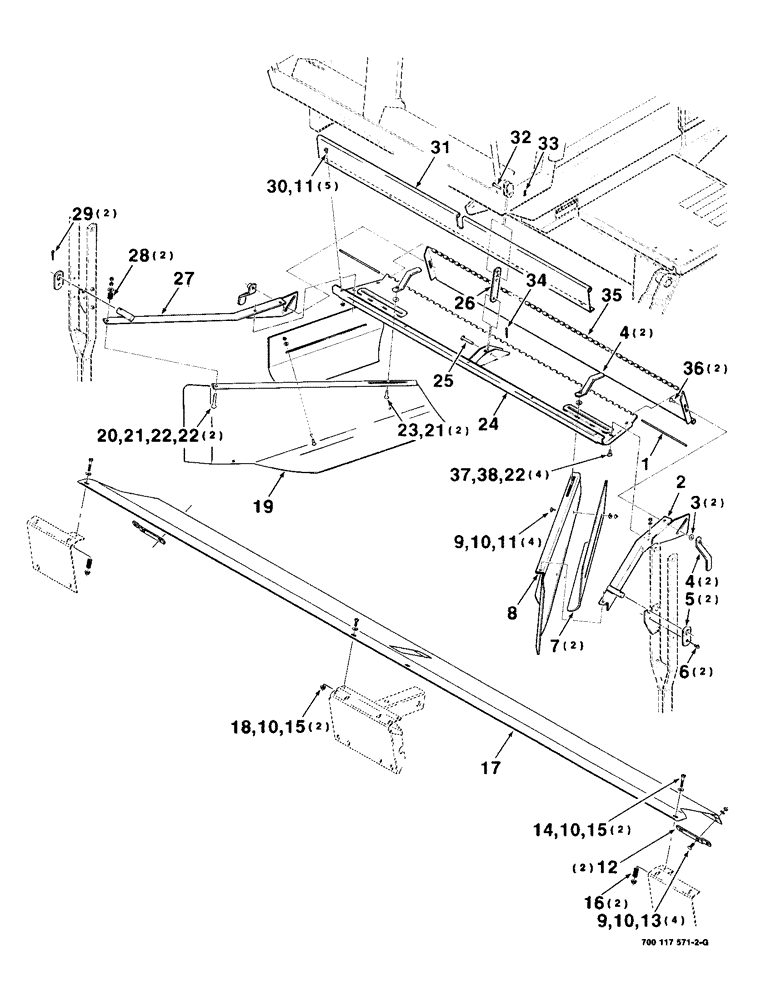

Схема запчастей Case IH 8830 - (7-26) - WINDROW FORMING SHIELDS (09) - CHASSIS
21
33
27
20
7
11
34
5
17
35
4
4
16
28
22
11
1
2
36
21
10
24
18
15
37
8
6
29
19
12
13
30
9
22
26
10
3
15
25
38
23
14
22
32
10
10
9
31

Артикул

Название

Примечание

Количество

1

6177794

PIN

- hinge

1шт.

2

700110761

ANGLE

- mounting, left

1шт.

3

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

2шт.

4

6232532

NUT

- nut

4шт.

5

700110223

STRAP

- retainer

2шт.

6

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

2шт.

7

700115447

SHIELD

EXTENSION - shield, forming

2шт.

8

700110903

SHIELD

- forming, left

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

12

700119749

STRAP

2шт.

13

425-105

NUT,5/16"-18, G5

4шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

16

7758212

SPRING

2шт.

17

700119748

SHIELD

- hay conditioner

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

700110904

SHIELD

- forming, right

1шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

22

425-106

NUT,3/8"-16, Cl 5

8шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

24

700110757

PLATE

SHIELD - top

1шт.

25

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

1шт.

26

700110694

STRAP

- adjustable

1шт.

27

700110762

ANGLE

- mounting, right

1шт.

28

58644

SPRING

- compression

2шт.

29

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

30

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

31

700111541

PANEL

- front

1шт.

32

141-11

CLEVIS PIN,3/8" x 1 1/4"

3/8 X 1-1/4 CLEVIS PIN

1шт.

33

T54573

PIN

.120 HAIRPIN COTTER

1шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

35

700111945

DEFLECTOR

- rear

1шт.

36

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/47 RHSSNB

2шт.

37

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

38

492-11038

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 38
