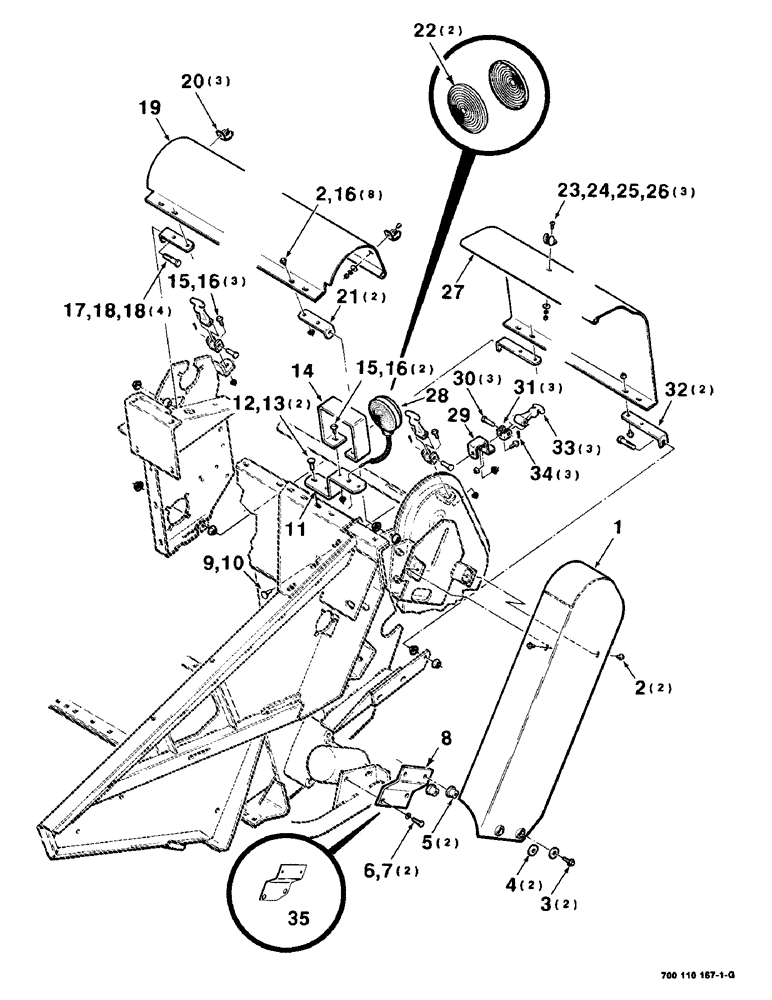

Запчасти Case IH 8830 (7-24) - HEADER SHIELDS AND FLASHER ASSEMBLIES, LEFT (09) - CHASSIS

1

700110713

SHIELD

- sickle drive

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

4

700111084

WASHER

2шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - spacer

2шт.

6

114-640

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

700110719

ANGLE

- support, 12 foot (S.N. CFH0029001 thru CFH0029878)

1шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.

11

700115109

MOUNTING PARTS

MOUNTING - flasher

1шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

14

700114720

GUARD

- flasher

1шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

13шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

19

700110625

SHIELD

- cross shaft (12 foot)

1шт.

700110576

SHIELD

- cross shaft (14 foot)

1шт.

20

8722910

BRACKET

- hook

3шт.

21

700110705

SUPPORT

- shield

2шт.

22

700711749

LENS

- flasher

2шт.

23

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

3шт.

24

195-513

WASHER,#10

PLAIN WASHER #10

3шт.

25

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

26

225-14110

NUT,#10-24

3шт.

27

700110707

SHIELD

- rear (12 foot)

1шт.

700110708

SHIELD

- rear (12 foot)

1шт.

28

199954A1

PACKAGE

LIGHT - flasher (Includes item 22)

1шт.

29

700110712

MOUNTING PARTS

BRACKET - mounting

1шт.

30

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

3шт.

31

776674

SUPPORT

BRACKET - anchor

3шт.

32

700110709

SUPPORT

- shield

2шт.

33

494307C1

LATCH

HOOK - rubber

3шт.

34

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

35

700124688

SUPPORT

ANGLE - support, 12 foot (S.N. CFH0029879 and later)

1шт.
