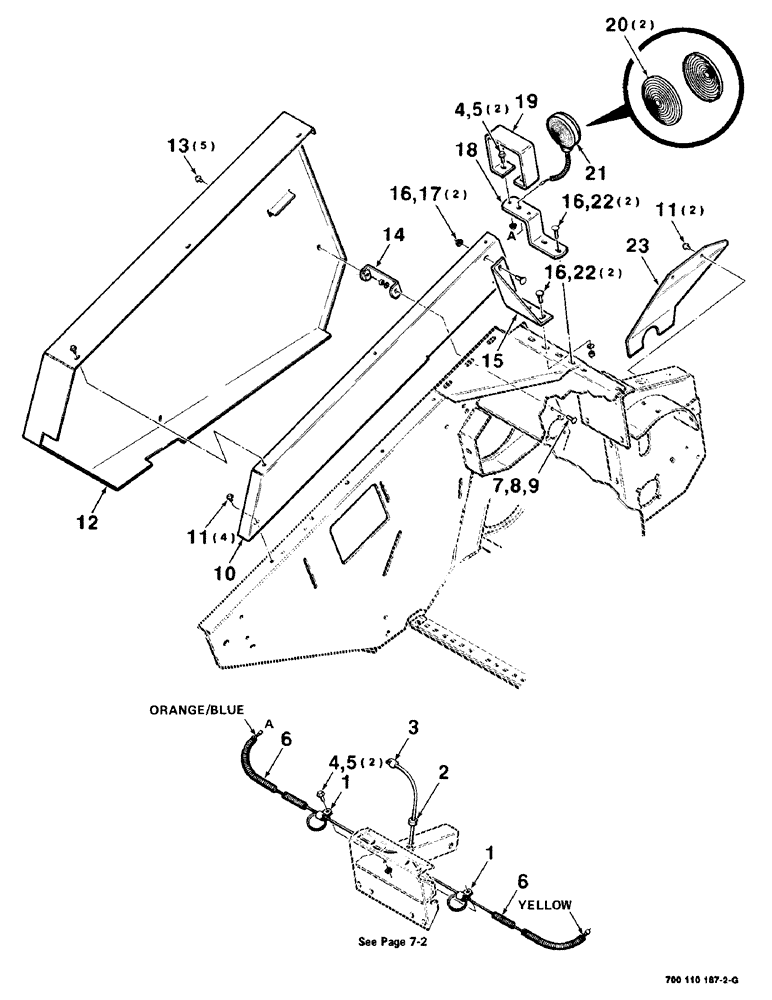

Запчасти Case IH 8830 (7-22) - HEADER SHIELDS AND FLASHER ASSEMBLIES, RIGHT (09) - CHASSIS

1

700708090

CLAMP

- line

3шт.

2

7027352

RUBBER

GROMMET

1шт.

3

700706782

WIRE HARNESS

HARNESS - electrical

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

6

700118773

COVER

CONDUIT - slit (74" - 12 foot)

2шт.

700118774

COVER

CONDUIT - slit (86" - 14 foot)

2шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

425-105

NUT,5/16"-18, G5

1шт.

10

700110716

SHIELD

- inner, right

1шт.

11

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

6шт.

12

700110717

SHIELD

- right

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

14

700109519

SUPPORT

- shield

1шт.

15

700109516

GUSSET

1шт.

16

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

18

700115109

MOUNTING PARTS

MOUNTING - flasher

1шт.

19

700114720

GUARD

- flasher

1шт.

20

700711749

LENS

- flasher

2шт.

21

199954A1

PACKAGE

LIGHT - flasher (Includes item 20)

1шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

23

700110711

SHIELD

- conditioner

1шт.
