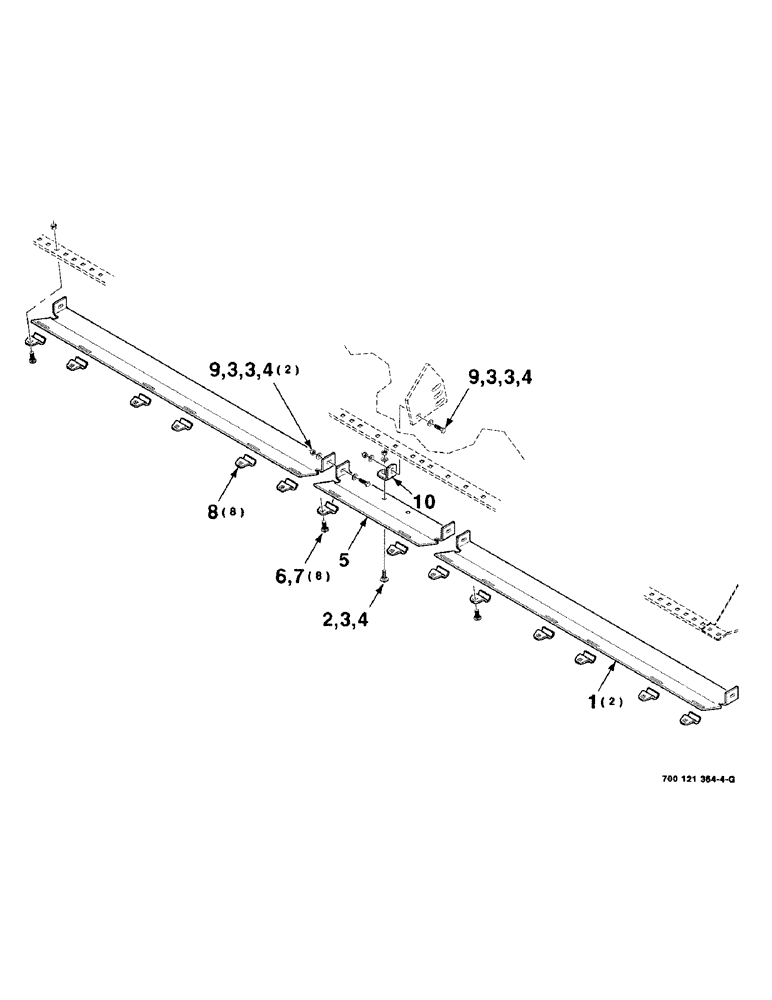

Запчасти Case IH 8830 (7-20) - HEADER WEAR PLATE ASSEMBLIES, 14 FOOT (09) - CHASSIS

1

700115448

PLATE

- wear

2шт.

2

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

1шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

700115889

SHIELD

PLATE - wear, center

1шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

8шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

8шт.

8

6453799

CLIP

8шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

700120997

ANGLE

1шт.

Try a 700115889 if looking for a different center wear plate.

1шт.
