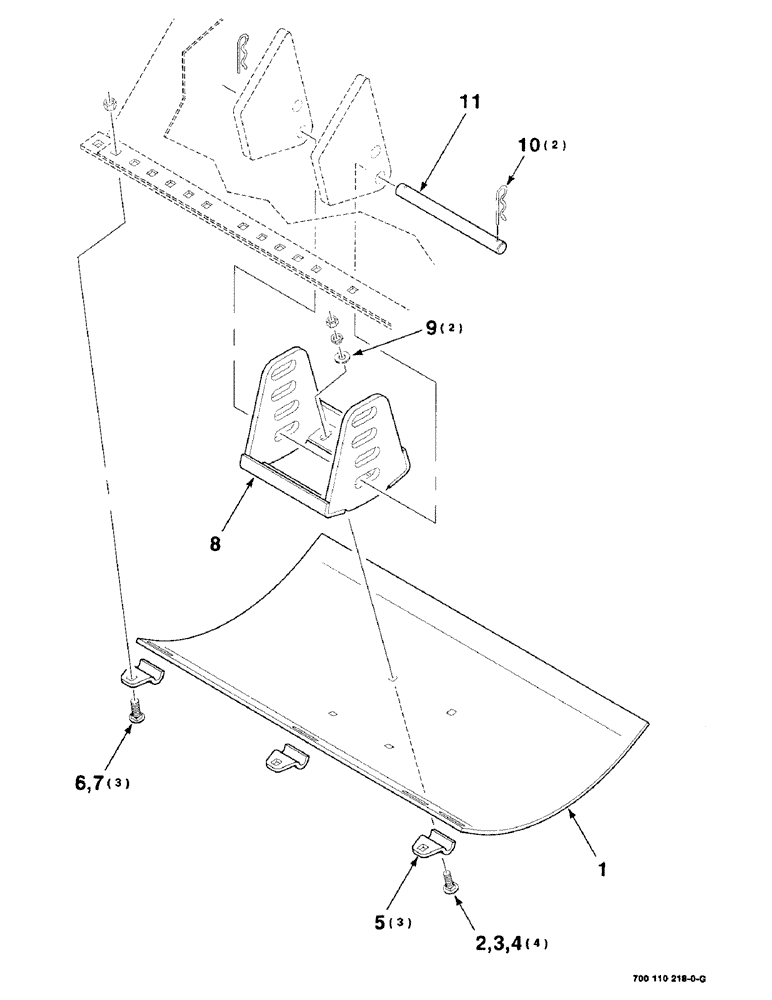

Запчасти Case IH 8830 (7-16) - SKID SHOE ASSEMBLY, 14 FOOT (09) - CHASSIS

1

700110219

SKID PLATE

SKID SHOE

1шт.

2

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

6453799

CLIP

- skid shoe

3шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

3шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

3шт.

8

700110220

SUPPORT

WA - skid shoe

1шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

10

S120261

PIN

.148 WIRE HAIRPIN COTTER

2шт.

11

700110222

PIN

- skid shoe

1шт.
