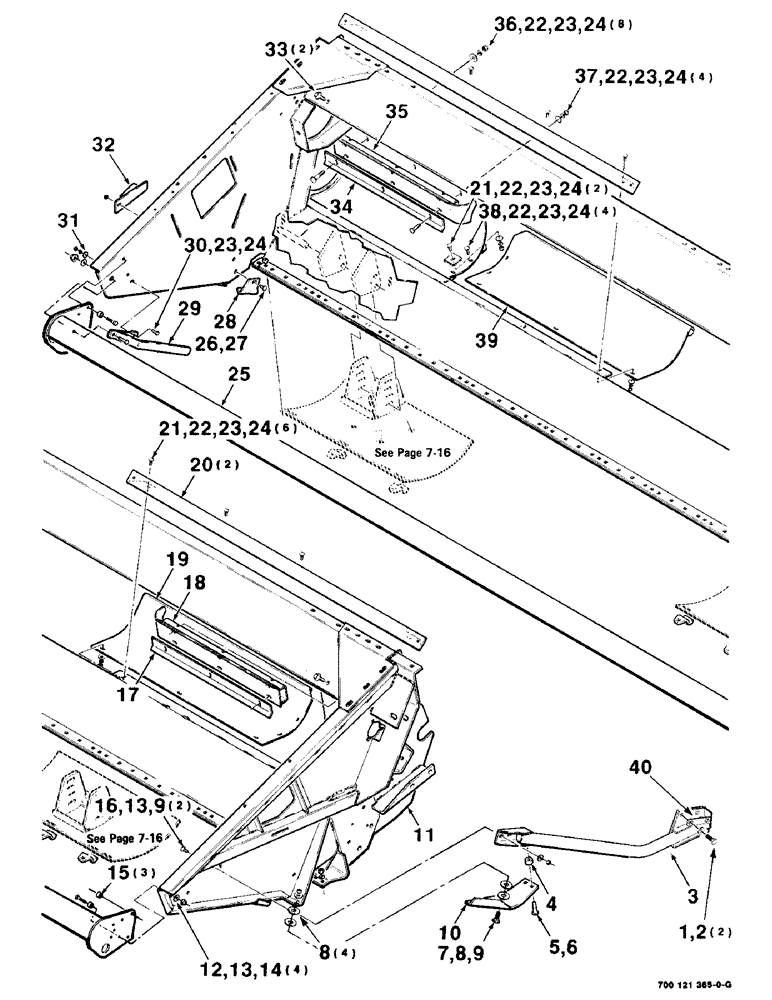

Запчасти Case IH 8830 (7-12) - HEADER, LEAN BAR AND WEAR PLATE ASSEMBLIES, 14 FOOT (09) - CHASSIS

1

114-612

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

5/8-11 X 1-3/4 C

2шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

3

700124647

GUARD

PIPE WA - guard

1шт.

4

700110561

SPACER

- left

1шт.

5

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

6

425-107

NUT,7/16"-14, G5

7/16-14 H

1шт.

7

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

1шт.

8

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

5шт.

9

425-105

NUT,5/16"-18, G5

3/8-16 H

3шт.

10

700110225

DIVIDER POINT

DIVIDER - left

1шт.

11

700110667

FRAME

HEADER FRAME WA

1шт.

12

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3/8-16 X 1-1/2 C GR8

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

15

6605752

SPACER

3шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

17

700109703

ANGLE

- stripper, left

1шт.

18

700109697

STRIPPER

WA - left

1шт.

19

700110215

PAN

EL - auger, left

1шт.

20

700111551

STRIPPER

55.118 inch long, (S.N. CFH0029001 thru CFH0029721)

2шт.

20

700111552

STRIPPER

66.378 inch long

2шт.

21

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

8шт.

22

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

24шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

25шт.

24

425-105

NUT,5/16"-18, G5

25шт.

25

700124285

BAR

LEAN BAR WA - 14 foot

1шт.

26

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

700110224

COVER

- guard

1шт.

29

700111947

DEFLECTOR

STRAP WA - deflector

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

31

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

32

700111941

SHIELD

- sickle

1шт.

33

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

2шт.

34

700109704

ANGLE

- stripper, right

1шт.

35

700109700

STRIPPER

WA - right

1шт.

36

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

8шт.

37

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

4шт.

38

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

39

700110216

PAN

EL - auger, right

1шт.
