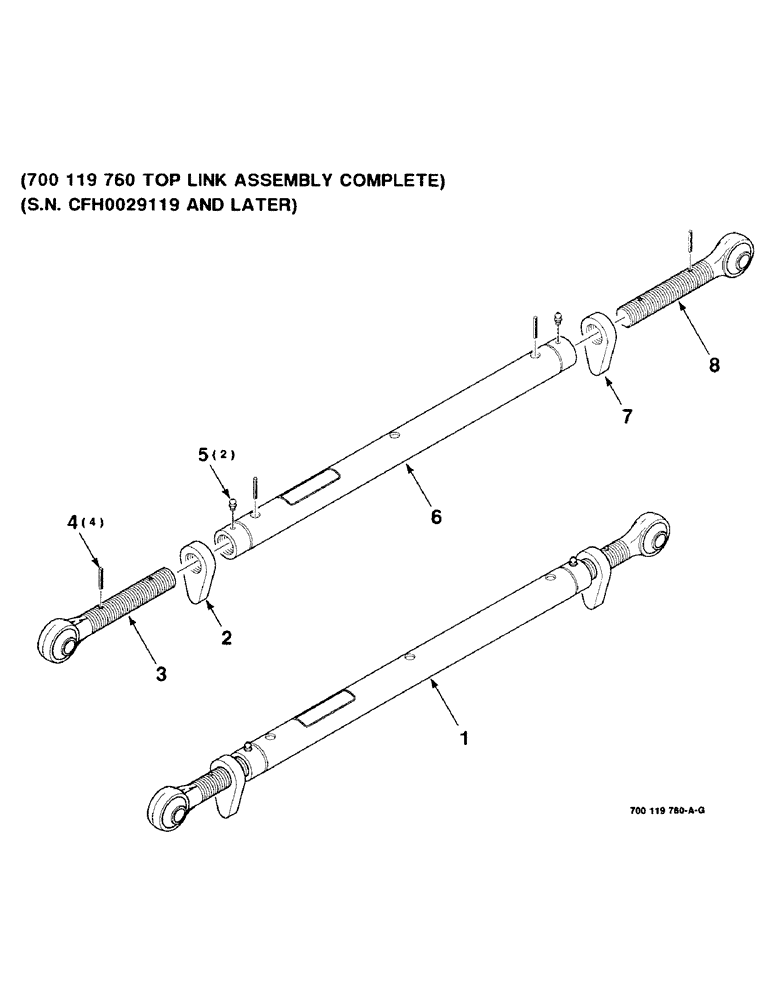

Запчасти Case IH 8830 (7-08) - TOP LINK ASSEMBLY, 700119760 TOP LINK ASSEMBLY COMPLETE, SERIAL NUMBER CFH0029119 AND LATER (09) - CHASSIS

1

700119760

TIE-ROD

LINK ASSEMBLY - top

1шт.

2

700117684

HANDLE

- lock, right hand thread

1шт.

3

700117693

TIE-ROD

LINK END - right hand thread

1шт.

4

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

700116671

TUBE

WA - center

1шт.

7

700117683

HANDLE

- lock, left hand thread

1шт.

8

700117692

TIE-ROD

LINK END - left hand thread

1шт.

700119760, link/a components have 1 1/8" threads. The link/a with 1" threads is 700110792. The 1" link/a and all it's component parts sub to the 1 1/8" assembly. -lp-

1шт.
