Запчасти Case IH 8830 (7-06) - HEADER LINKAGE MOUNTING ASSEMBLY, UPPER, SERIAL NUMBER CFH0029119 AND LATER (09) - CHASSIS

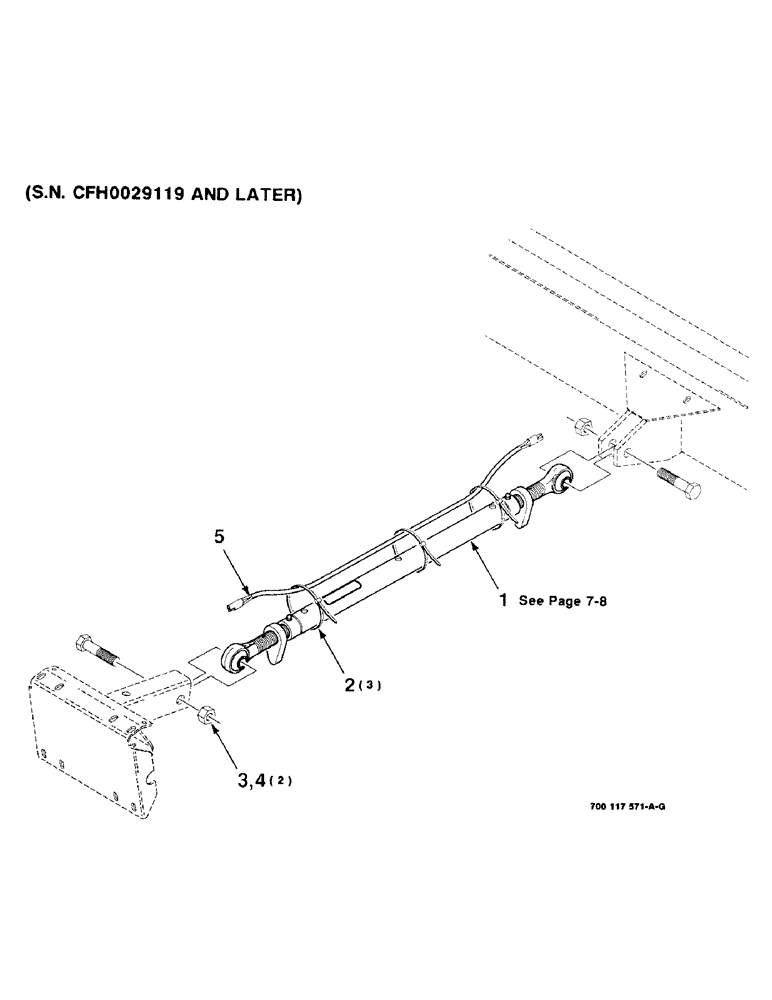

Схема запчастей Case IH 8830 - (7-06) - HEADER LINKAGE MOUNTING ASSEMBLY, UPPER, SERIAL NUMBER CFH0029119 AND LATER (09) - CHASSIS
1
5
3
2
4

Артикул

Название

Примечание

Количество

1

700119760

TIE-ROD

TOP LINK ASSEMBLY

1шт.

2

7021728

STRAP

TIE - cable

3шт.

3

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

4

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

5

700706637

FLEXIBLE HOSE

HARNESS - wire

1шт.

700119760, link/a components have 1 1/8" threads. The link/a with 1" threads is 700110792. The 1" link/a and all it's component parts sub to the 1 1/8" assembly. -lp-

1шт.

Выбрано товаров: 6
