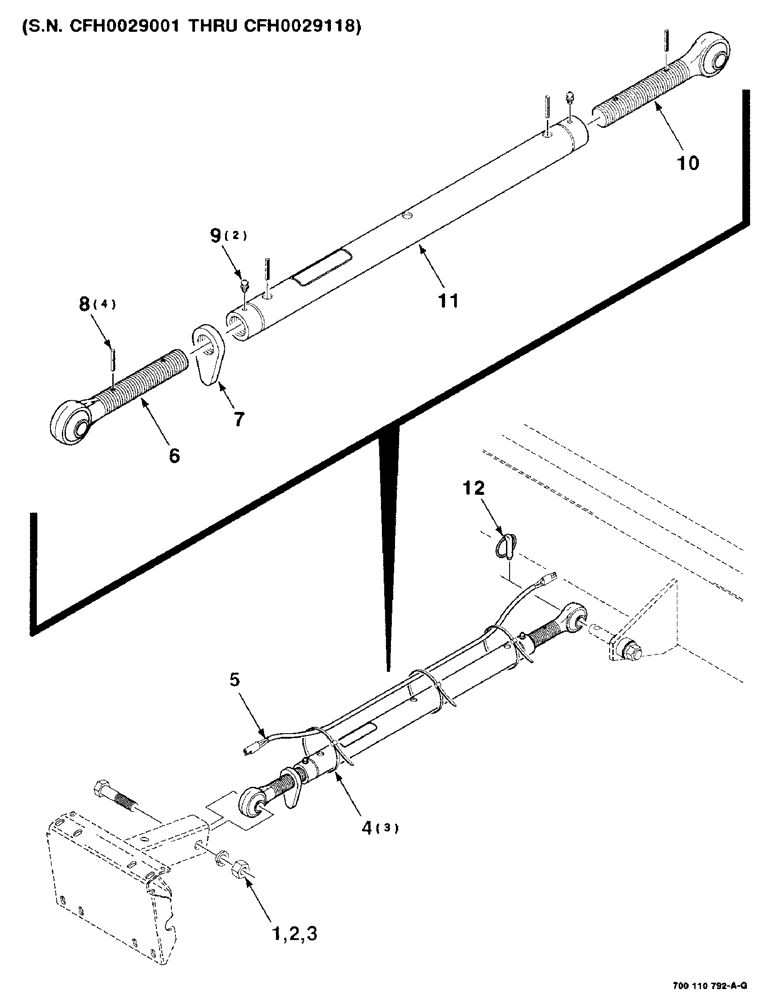

Запчасти Case IH 8830 (7-04) - HEADER SUPPORT LINKAGE ASSEMBLY, UPPER, SERIAL NUMBER CFH0029001 THRU CFH0029118 (09) - CHASSIS

1

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

1шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

3

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

4

529070

CABLE TIE,368.3mm L

TIE - cable

3шт.

5

700706637

FLEXIBLE HOSE

HARNESS - wire

1шт.

6

700119760

TIE-ROD

LINK END - right hand thread

1шт.

7

700705425

HANDLE

- lock, right hand thread

1шт.

8

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

4шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

700119760

TIE-ROD

LINK END - left hand thread

1шт.

11

700119760

TIE-ROD

TUBE WA - center

1шт.

12

D130037

HEADED PIN,8.73mm OD

7/16 X 1-1/2 LINCH PIN

1шт.

700119760, link/a components have 1 1/8" threads. The link/a with 1" threads is 700110792. The 1" link/a and all it's component parts sub to the 1 1/8" assembly. -lp-

1шт.
