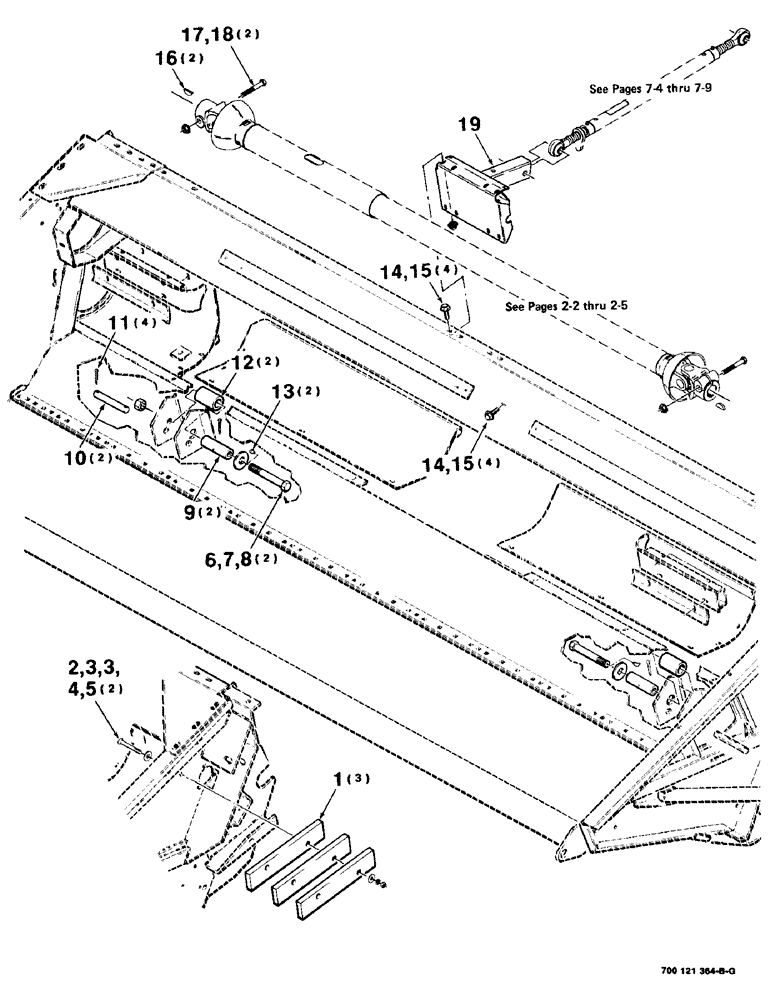

Запчасти Case IH 8830 (7-02) - HEADER SUPPORT PIVOT AND BAR WEIGHT ASSEMBLIES (09) - CHASSIS

1

700111574

BAR

- weight

3шт.

2

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 X 3-1/4 RHSNB

2шт.

3

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

700110562

SCREW

3/4-10 X 6-1/2 BOLT - special

2шт.

7

495-21081

WASHER,3/4"

2шт.

8

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

9

700110563

BUSHING

- inner

2шт.

10

700111961

PIN

- safety

2шт.

11

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

4шт.

12

6185508

BUSHING

HUB - outer

2шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

15

231-5146

FLANGE NUT,3/8"-16

8шт.

16

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

17

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

19

700110226

SUPPORT

- upper

1шт.
