Запчасти Case IH 8830 (5-12) - HAY CONDITIONER SPRING ASSEMBLY, STANDARD SPRING, SERIAL NUMBER CFH0029243 THRU CFH0029758 (09) - CHASSIS

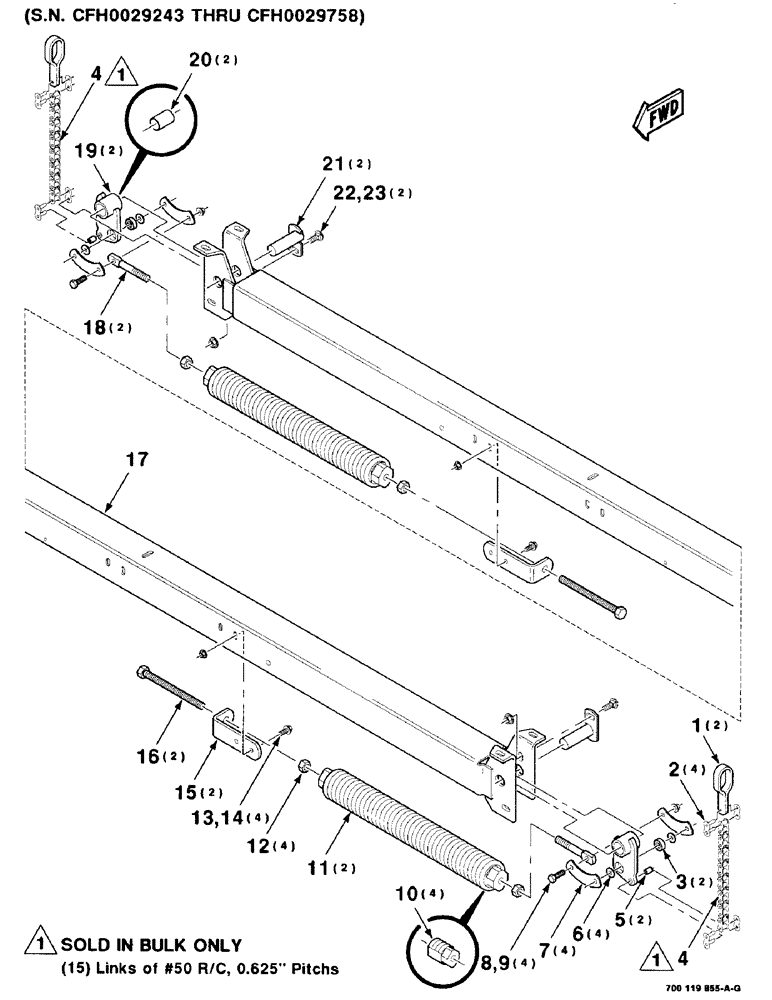

Схема запчастей Case IH 8830 - (5-12) - HAY CONDITIONER SPRING ASSEMBLY, STANDARD SPRING, SERIAL NUMBER CFH0029243 THRU CFH0029758 (09) - CHASSIS
11
20
18
22
12
23
3
1
4
10
5
4
13
15
21
16
17
7
14
9
6
8
2
19

Артикул

Название

Примечание

Количество

1

6835896

STRAP

2шт.

2

1310D

LINK

#50 CONNECTOR LINK

4шт.

3

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

BEARING - cylindrical

2шт.

4

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

#50 ROLLER CHAIN (10 foot bulk length)

1шт.

5

700118104

SPACER

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

7

700119865

LINK

4шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

10

6146542

SPRING NUT

PLUG - spring

4шт.

11

6171060

SPRING,11.25" L

ASSEMBLY (Includes item 10)

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

15

700119866

BRACKET

ANGLE - spring mounting

2шт.

16

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

2шт.

17

700119856

SUPPORT

CHANNEL WA

1шт.

18

700119868

STUD

2шт.

19

700127417

CAM

ASSEMBLY (Includes item 20)

2шт.

20

740803

BUSHING

BEARING - oilite

2шт.

21

6831069

PIN

WA

2шт.

22

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

Выбрано товаров: 23
