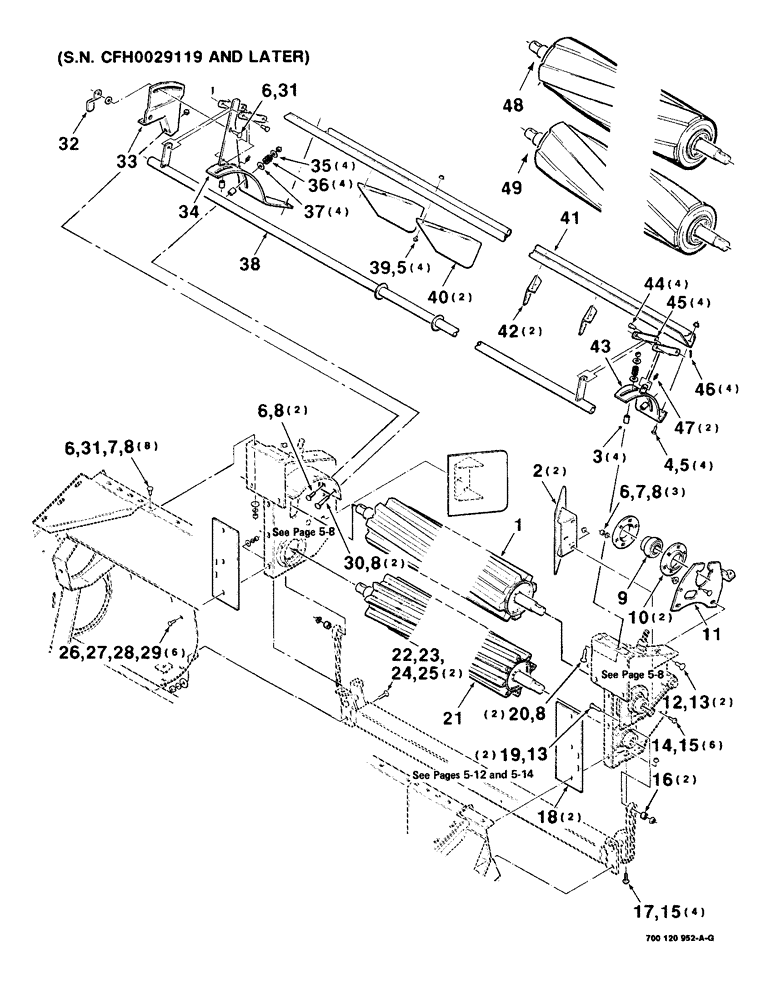

Запчасти Case IH 8830 (5-06) - HAY CONDITIONER ASSEMBLY, SERIAL NUMBER CFH0029119 AND LATER (09) - CHASSIS

1

700706617

ROLL

- rubber, upper

1шт.

700121385

ROLL

- steel, upper (Extra equipment)

1шт.

2

700110202

SHIELD

WA - forming

2шт.

3

700119752

SPACER

4шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

14шт.

7

492-11038

LOCK WASHER,3/8"

11шт.

8

425-106

NUT,3/8"-16, Cl 5

17шт.

9

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

10

712612

FLANGE

- bearing

2шт.

11

700110206

SUPPORT

WA

1шт.

12

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

15

231-5146

FLANGE NUT,3/8"-16

10шт.

16

428938

SPACER

2шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

18

700110186

STEEL PLATE

SHIM

2шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

20

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

21

700115122

ROLLER

ROLL WA - lower

1шт.

22

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

23

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

27

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

29

425-105

NUT,5/16"-18, G5

6шт.

30

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 RHSNB

2шт.

31

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

9шт.

32

6232532

NUT

ASSEMBLY

1шт.

33

700119751

SUPPORT

MOUNTING

1шт.

34

700119757

SUPPORT

MOUNTING WA - deflector, right

1шт.

35

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

36

700709215

SPRING

4шт.

37

495-11066

WASHER,5/8", SAE

5/8 NARROW PLAIN WASHER

4шт.

38

700119753

FLEXIBLE HOSE

PIPE WA

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

40

700110909

FIN

- right

2шт.

41

700110706

SHIELD

1шт.

42

700110907

FIN

- left

2шт.

43

700119755

SUPPORT

MOUNTING WA - deflector, left

1шт.

44

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

4шт.

45

700111936

STRAP

4шт.

46

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

47

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

48

700712169

ROLL

- H/C Ticor 9 foot left hand spiral

1шт.

49

700712170

ROLL

- H/C Ticor 9 foot right hand spiral

1шт.
