Запчасти Case IH 8830 (5-02) - HAY CONDITIONER ASSEMBLY, SERIAL NUMBER CFH0029001 THRU CFH0029118 (09) - CHASSIS

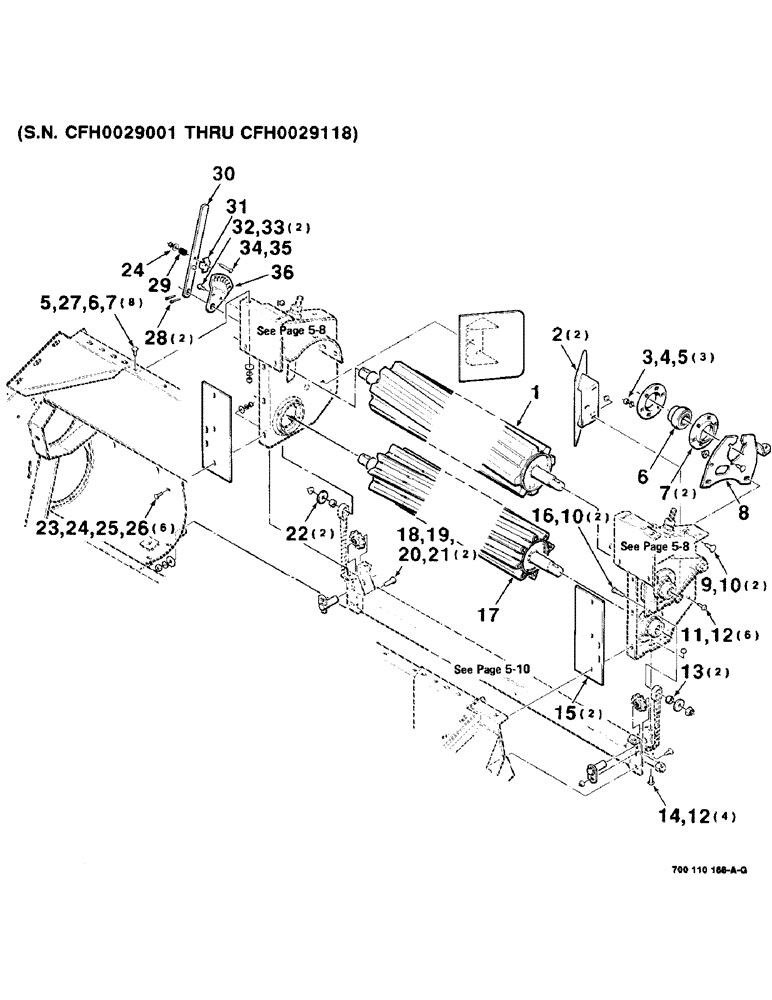

Схема запчастей Case IH 8830 - (5-02) - HAY CONDITIONER ASSEMBLY, SERIAL NUMBER CFH0029001 THRU CFH0029118 (09) - CHASSIS
31
9
16
1
19
35
8
27
21
24
6
10
20
24
25
14
13
17
11
29
28
32
22
15
26
30
7
12
5
12
6
18
34
3
10
4
33
23
2
7
36
5

Артикул

Название

Примечание

Количество

1

700706617

ROLL

- rubber, upper

1шт.

2

700110202

SHIELD

WA - forming

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

11шт.

4

492-11038

LOCK WASHER,3/8"

11шт.

5

425-106

NUT,3/8"-16, Cl 5

11шт.

6

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

7

825620C1

RETAINER

- bearing

2шт.

8

700110206

SUPPORT

WA

1шт.

9

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

12

231-5146

FLANGE NUT,3/8"-16

10шт.

13

428938

SPACER

2шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

15

700110186

STEEL PLATE

SHIM

2шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

17

700115122

ROLLER

ROLL WA - lower

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

19

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

76737

WASHER

2шт.

23

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

24

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

7шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

425-105

NUT,5/16"-18, G5

6шт.

27

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

28

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

29

758342

CABLE

1шт.

30

700111954

HANDLE

STRAP WA - handle

1шт.

31

700111943

RETAINER

1шт.

32

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

34

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

35

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

1шт.

36

700111942

MOUNTING PARTS

MOUNTING - adjustment

1шт.

Выбрано товаров: 36
