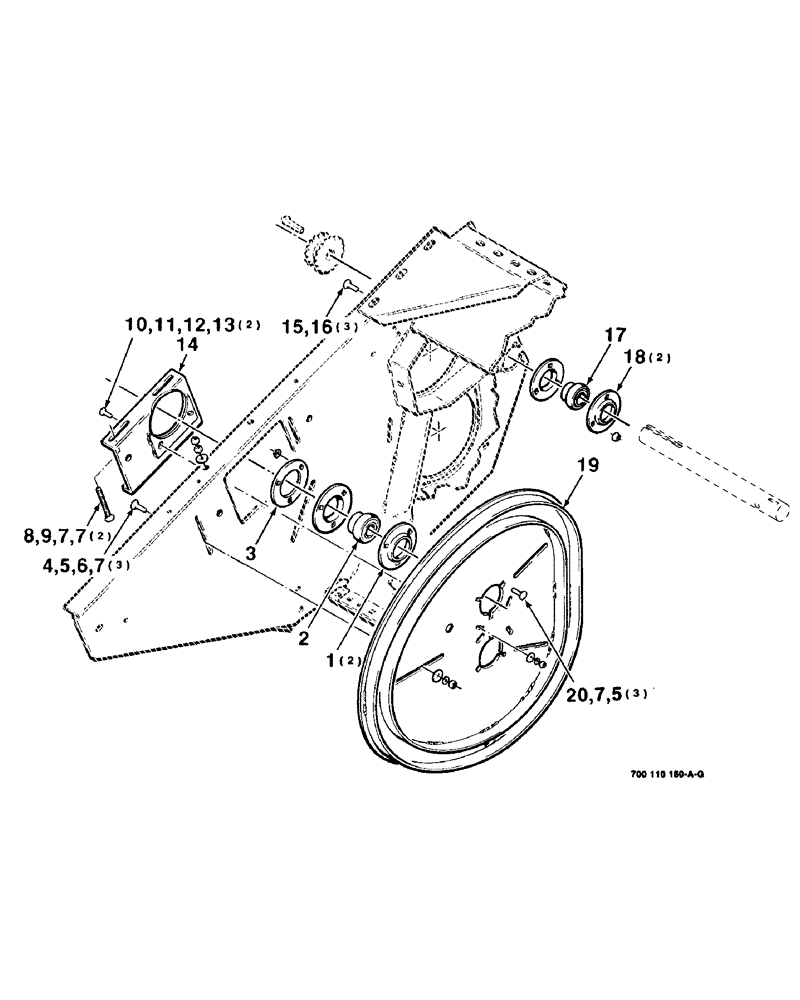

Запчасти Case IH 8830 (4-04) - AUGER SUPPORT AND REEL CAM TRACK ASSEMBLIES, RIGHT (09) - CHASSIS

1

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

2

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- spherical

1шт.

3

700117899

SHIM

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

6

492-11038

LOCK WASHER,3/8"

3шт.

7

425-106

NUT,3/8"-16, Cl 5

10шт.

8

700706612

SCREW

3/8-16 X 4-1/2 FTRHSNB

2шт.

9

495-21044

WASHER,3/8"

2шт.

10

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

2шт.

11

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

700110573

SUPPORT

- reel, right

1шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

17

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- spherical

1шт.

18

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

19

700120804

ECCENTRIC

TRACK WA - cam

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.
