Запчасти Case IH 8830 (4-02) - AUGER ASSEMBLY, 12 AND 14 FOOT (09) - CHASSIS

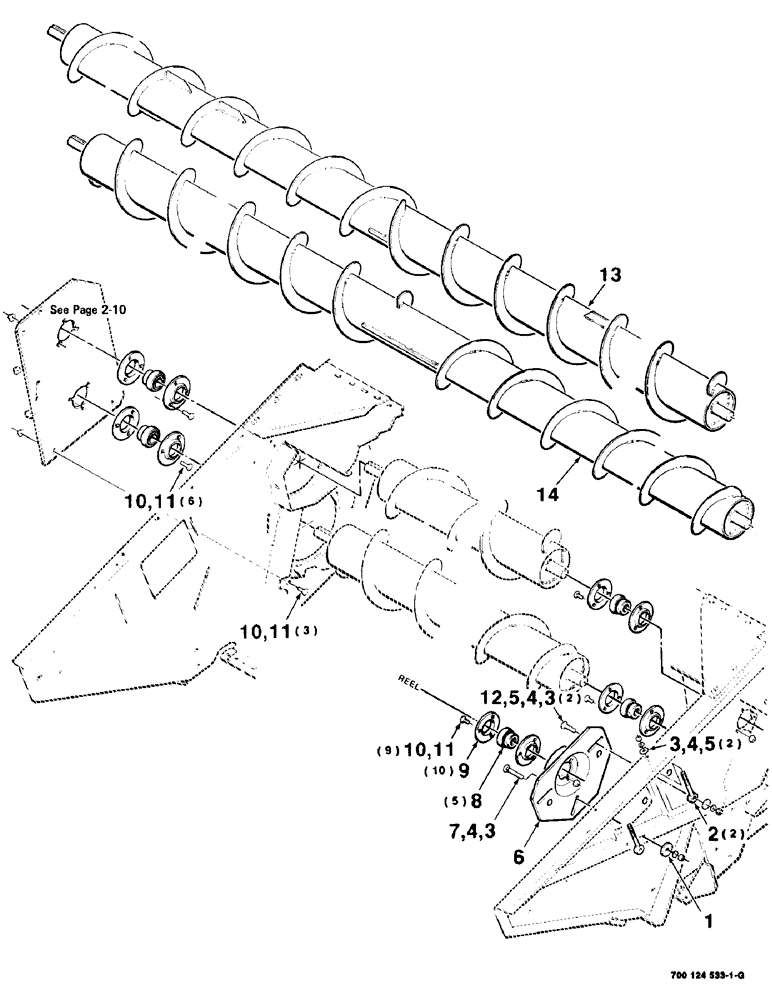

Схема запчастей Case IH 8830 - (4-02) - AUGER ASSEMBLY, 12 AND 14 FOOT (09) - CHASSIS
7
11
5
12
10
10
6
10
4
2
3
1
3
5
13
8
4
11
14
1
3
4

Артикул

Название

Примечание

Количество

1

6581052

WASHER

- special

1шт.

2

700110578

ROD

- eyebolt

2шт.

3

425-106

NUT,3/8"-16, Cl 5

5шт.

4

492-11038

LOCK WASHER,3/8"

5шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

6

700110586

LARGE PLATE

PLATE - ring, left

1шт.

7

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

1шт.

8

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- spherical

5шт.

P/N for collar for Bearing is P/N 455112R11.

1шт.

9

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

10шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

18шт.

11

231-5146

FLANGE NUT,3/8"-16

18шт.

12

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

13

700110637

AUGER

WA - upper (12 foot)

1шт.

700124892

AUGER

WA - upper (12 foot)

1шт.

700109685

AUGER

WA - upper (14 foot)

1шт.

700124894

AUGER

WA - upper (14 foot)

1шт.

14

700110639

AUGER

WA - lower (12 foot)

1шт.

700124893

AUGER

WA - lower (12 foot)

1шт.

700109691

AUGER

WA - lower (14 foot)

1шт.

700124895

AUGER

WA - lower (14 foot)

1шт.

Выбрано товаров: 21
