Запчасти Case IH 8830 (3-04) - SICKLE AND GUARD ASSEMBLY, RANGE GUARD, 14 FOOT (09) - CHASSIS

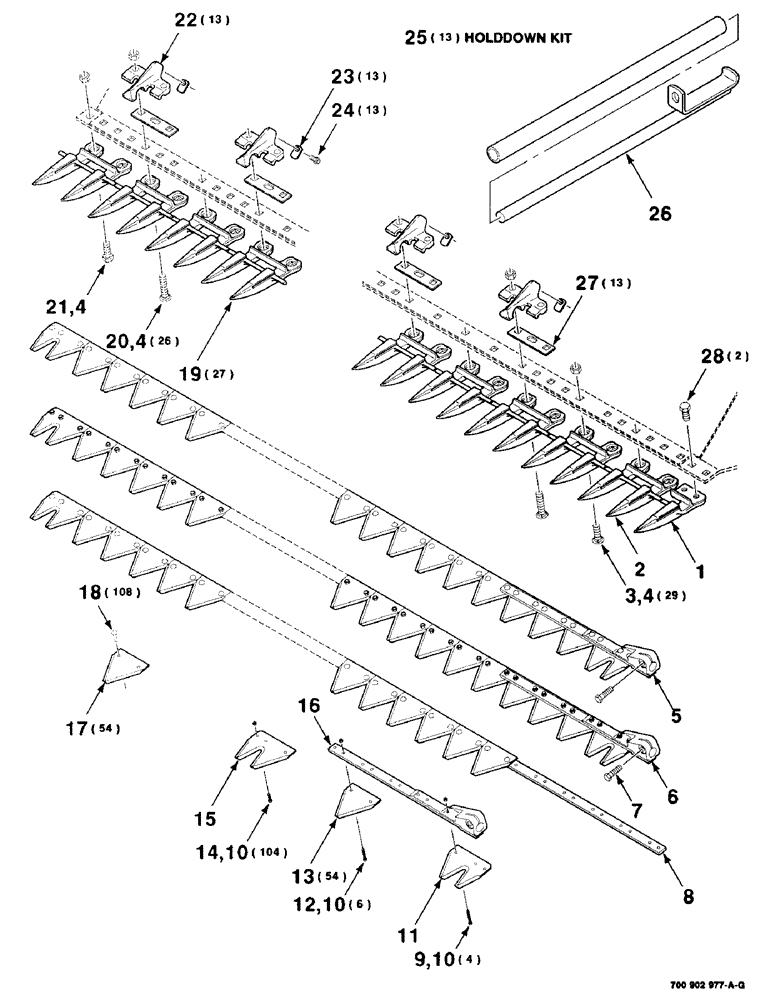

Схема запчастей Case IH 8830 - (3-04) - SICKLE AND GUARD ASSEMBLY, RANGE GUARD, 14 FOOT (09) - CHASSIS
26
17
9
23
11
25
28
16
13
5
19
4
8
27
15
20
2
6
24
14
1
7
4
22
10
12
18
10
4
10
21
3

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

- single

1шт.

2

700707464

GUARD

- double

1шт.

3

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

29шт.

4

425-107

NUT,7/16"-14, G5

7/16-14 H

56шт.

5

700709623

KNIFE ASSY

SICKLE ASSEMBLY - 14 foot (With head-riveted)

1шт.

Ref #'s 5,6 & 8 (700709623): This 14' sickle is a bolt on section with head.

1шт.

6

700709623

KNIFE ASSY

SICKLE ASSEMBLY - 14 foot (With head-bolt eze)

1шт.

Ref #'s 5,6 & 8 (700709623): This 14' sickle is a bolt on section with head.

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

700709623

KNIFE ASSY

SICKLE ASSEMBLY - 14 foot (Without head-riveted)

1шт.

Ref #'s 5,6 & 8 (700709623): This 14' sickle is a bolt on section with head.

1шт.

9

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Box of 25 bolts and locknuts)

4шт.

10

1954816C1

LOCK NUT

#12-24 LOCKNUT

114шт.

11

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

12

700705297

KIT

#12-24 X 1 BOLT (Box of 25 bolts and locknuts)

6шт.

13

700705300

KNIFE SECTION

SECTION - top serrated, heavy duty .092 thick (Packaged 25 per box)

54шт.

14

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Box of 50 bolts and locknuts)

104шт.

15

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

16

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

17

NLS

NO LONGER SERVICED

SICKLE SECTION - smooth, standard .105 thick (Packaged 25 per box)

54шт.

18

990817R91

RIVET

#5-1/2 X 9/16 ROUND HEAD RIVET (1 lb. box of approx. 140 rivets)

108шт.

19

700707147

GUARD

- double

27шт.

20

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

26шт.

21

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

7/16-14 X 1-1/4 C

1шт.

22

700117849

PACKAGE

HOLDDOWN

13шт.

Ref #22 is a holddown kit with hardware see Ref #25.

1шт.

23

700107019

KIT

WELD NUT

13шт.

Ref #23 is a pkg of 10

1шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

13шт.

25

700117849

PACKAGE

HOLDDOWN KIT - with hardware (Includes items 19, 3, 21, 22 and 23)

13шт.

26

6135081

GUARD

STRAIGHTENER TOOL

1шт.

27

700111956

PLATE

SHIM

13шт.

28

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

Выбрано товаров: 33
