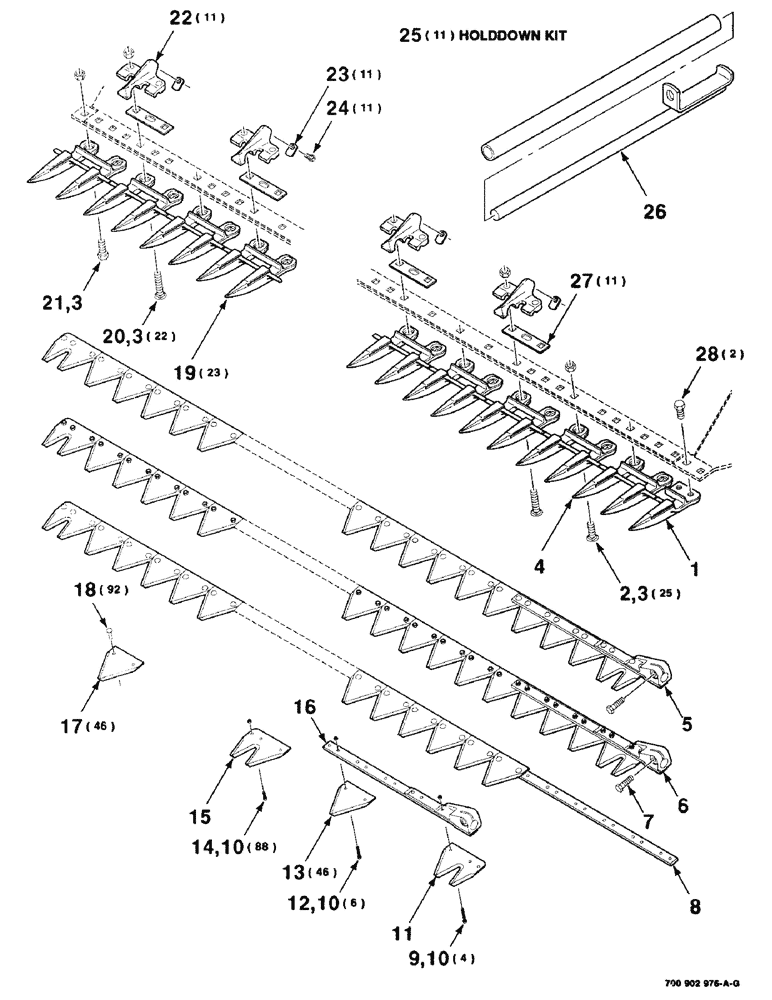

Запчасти Case IH 8830 (3-02) - SICKLE AND GUARD ASSEMBLY, RANGE GUARD, 12 FOOT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
49395
GUARD
- single
1шт.
2
CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5
25шт.
3
425-107
NUT,7/16"-14, G5
7/16-14 H
48шт.
4
700707464
GUARD
- double
1шт.
5
700709622
KNIFE ASSY
SICKLE ASSEMBLY - 12 foot (Bolted)
1шт.
6
700709622
KNIFE ASSY
SICKLE ASSEMBLY - 12 foot (With head-bolt eze)
1шт.
7
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
8
700709622
KNIFE ASSY
SICKLE ASSEMBLY - 12 foot (Bolted)
1шт.
9
700706479
BOLT AND NUT
#12-24 X 1-1/4 BOLT (Box of 25 bolts and locknuts)
4шт.
10
1954816C1
LOCK NUT
#12-24 LOCKNUT
98шт.
11
700705462
KNIFE SECTION
SECTION - double, left end
1шт.
12
700705297
KIT
#12-24 X 1 BOLT (Box of 25 bolts and locknuts)
6шт.
13
700705300
KNIFE SECTION
SECTION - top serrated, heavy duty .092 thick (Packaged 25 per box)
46шт.
14
700705296
BOLT AND NUT
#12-24 X 5/8 BOLT (Box of 50 bolts and locknuts)
88шт.
15
700705463
KNIFE SECTION
SECTION - double, right end
1шт.
16
700111003
KNIFE HEAD
SICKLE HEAD WA
1шт.
17
49262
KNIFE SECTION
SICKLE SECTION - smooth, standard .105 thick (Packaged 25 per box)
46шт.
18
990817R91
RIVET
#5-1/2 X 9/16 ROUND HEAD RIVET (1 lb. box of approx. 140 rivets)
92шт.
19
700707147
GUARD
- double
23шт.
20
111-416
CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5
7/16-14 X 2 RHSNB
22шт.
21
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
7/16-14 X 1-1/4 C
1шт.
22
700117849
PACKAGE
HOLDDOWN
11шт.
Ref #22 is a holddown kit with hardware see Ref #25.
1шт.
23
700107019
KIT
WELD NUT
11шт.
Ref #23 is a pkg of 10
1шт.
24
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
C Hex, 5/16"-18 x 3/4", G5, Full Thd
11шт.
25
700117849
PACKAGE
HOLDDOWN KIT - with hardware (Includes items 3, 21, 22 and 23)
11шт.
26
6135081
GUARD
STRAIGHTENER TOOL
1шт.
27
700111956
PLATE
SHIM
27шт.
28
414-716
BOLT,Hex, 7/16" - 20 x 1", Gr 5
2шт.
Выбрано товаров: 30
