(2-26) - U-JOINT ASSEMBLY, 700705 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8830 (2-26) - U-JOINT ASSEMBLY, 700705 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

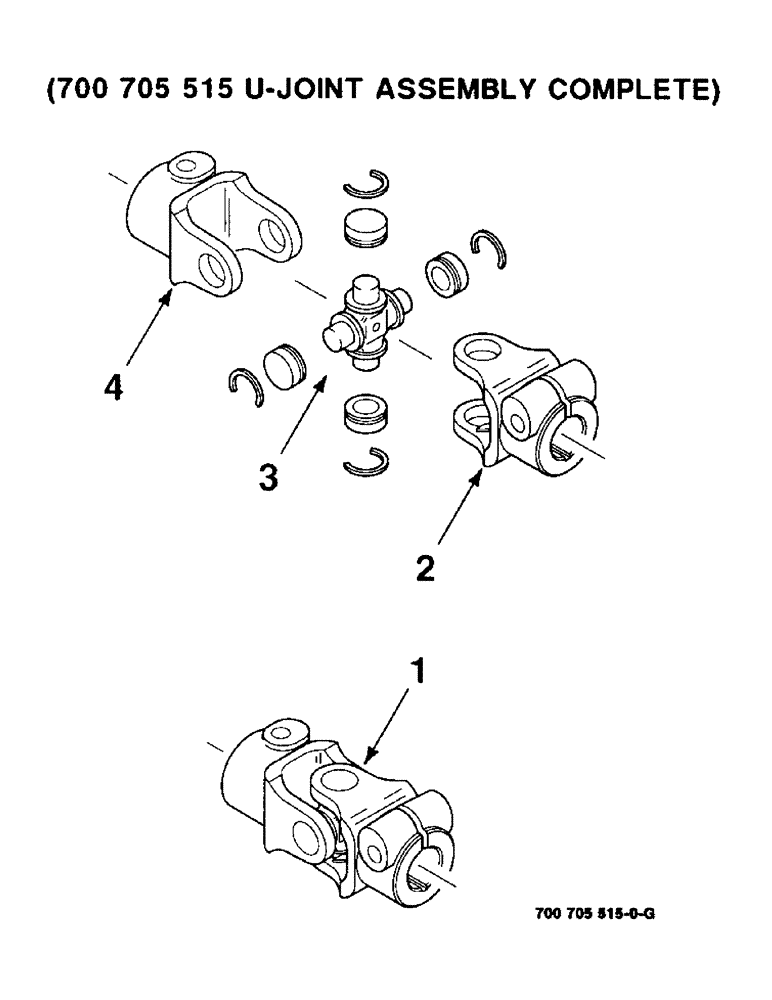

Схема запчастей Case IH 8830 - (2-26) - U-JOINT ASSEMBLY, 700705 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

757716

CLAMP

YOKE

1шт.

3

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

1шт.

4

700705535

YOKE

1шт.

REF ITEM 4-P/N 700705535 IS THE YOKE FOR THE SHAFT WITH KEYWAY ON ONE END AND THE SMOOTH SURFACE ON OTHEREND. SEE PAGE 2-14 FOR CLARIFICATION.

1шт.

Выбрано товаров: 5
